Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: sizeChange
Namespace: http://www.fpml.org/FpML-5/confirmation
Type: nsA:TradeLegSizeChange
Containing Schema: fpml-business-events-5-10.xsd
MinOccurs (1)
MaxOccurs unbounded
Abstract

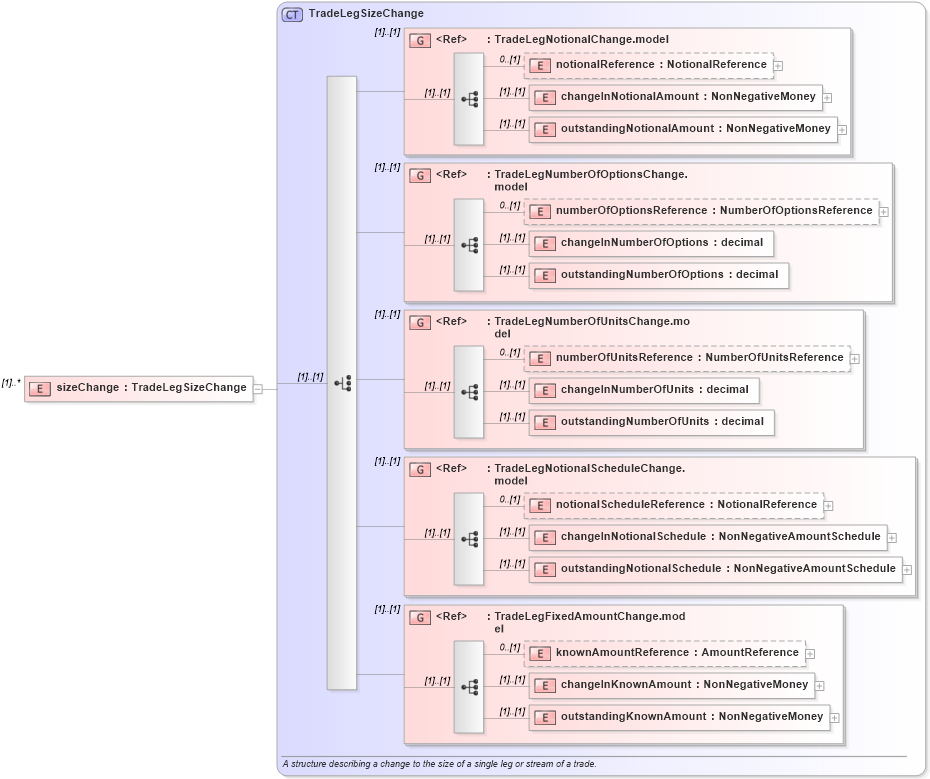

Collapse XSD Schema Diagram:
Drilldown into outstandingKnownAmount in schema fpml-business-events-5-10_xsd Drilldown into changeInKnownAmount in schema fpml-business-events-5-10_xsd Drilldown into knownAmountReference in schema fpml-business-events-5-10_xsd Drilldown into TradeLegFixedAmountChange.model in schema fpml-business-events-5-10_xsd Drilldown into outstandingNotionalSchedule in schema fpml-business-events-5-10_xsd Drilldown into changeInNotionalSchedule in schema fpml-business-events-5-10_xsd Drilldown into notionalScheduleReference in schema fpml-business-events-5-10_xsd Drilldown into TradeLegNotionalScheduleChange.model in schema fpml-business-events-5-10_xsd Drilldown into outstandingNumberOfUnits in schema fpml-business-events-5-10_xsd Drilldown into changeInNumberOfUnits in schema fpml-business-events-5-10_xsd Drilldown into numberOfUnitsReference in schema fpml-business-events-5-10_xsd Drilldown into TradeLegNumberOfUnitsChange.model in schema fpml-business-events-5-10_xsd Drilldown into outstandingNumberOfOptions in schema fpml-business-events-5-10_xsd Drilldown into changeInNumberOfOptions in schema fpml-business-events-5-10_xsd Drilldown into numberOfOptionsReference in schema fpml-business-events-5-10_xsd Drilldown into TradeLegNumberOfOptionsChange.model in schema fpml-business-events-5-10_xsd Drilldown into outstandingNotionalAmount in schema fpml-business-events-5-10_xsd Drilldown into changeInNotionalAmount in schema fpml-business-events-5-10_xsd Drilldown into notionalReference in schema fpml-business-events-5-10_xsd Drilldown into TradeLegNotionalChange.model in schema fpml-business-events-5-10_xsd Drilldown into TradeLegSizeChange in schema fpml-business-events-5-10_xsdXSD Diagram of sizeChange in schema fpml-business-events-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="sizeChange" type="TradeLegSizeChange" maxOccurs="unbounded" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
notionalReference nsA:notionalReference 0 (1)
changeInNotionalAmount nsA:changeInNotionalAmount (1) (1)
outstandingNotionalAmount nsA:outstandingNotionalAmount (1) (1)
numberOfOptionsReference nsA:numberOfOptionsReference 0 (1)
changeInNumberOfOptions nsA:changeInNumberOfOptions (1) (1)
outstandingNumberOfOptions nsA:outstandingNumberOfOptions (1) (1)
numberOfUnitsReference nsA:numberOfUnitsReference 0 (1)
changeInNumberOfUnits nsA:changeInNumberOfUnits (1) (1)
outstandingNumberOfUnits nsA:outstandingNumberOfUnits (1) (1)
notionalScheduleReference nsA:notionalScheduleReference 0 (1)
changeInNotionalSchedule nsA:changeInNotionalSchedule (1) (1)
outstandingNotionalSchedule nsA:outstandingNotionalSchedule (1) (1)
knownAmountReference nsA:knownAmountReference 0 (1)
changeInKnownAmount nsA:changeInKnownAmount (1) (1)
outstandingKnownAmount nsA:outstandingKnownAmount (1) (1)
<xs:group> nsA:TradeLegNotionalChange.model (1) (1)
<xs:group> nsA:TradeLegNumberOfOptionsChange.model (1) (1)
<xs:group> nsA:TradeLegNumberOfUnitsChange.model (1) (1)
<xs:group> nsA:TradeLegNotionalScheduleChange.model (1) (1)
<xs:group> nsA:TradeLegFixedAmountChange.model (1) (1)
Collapse Derivation Tree:
