Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: spread
Namespace: http://www.fpml.org/FpML-5/transparency
Type: nsF:CommoditySpread
Containing Schema: fpml-com-5-10.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
The spread over or under the Commodity Reference Price for this leg of the trade.

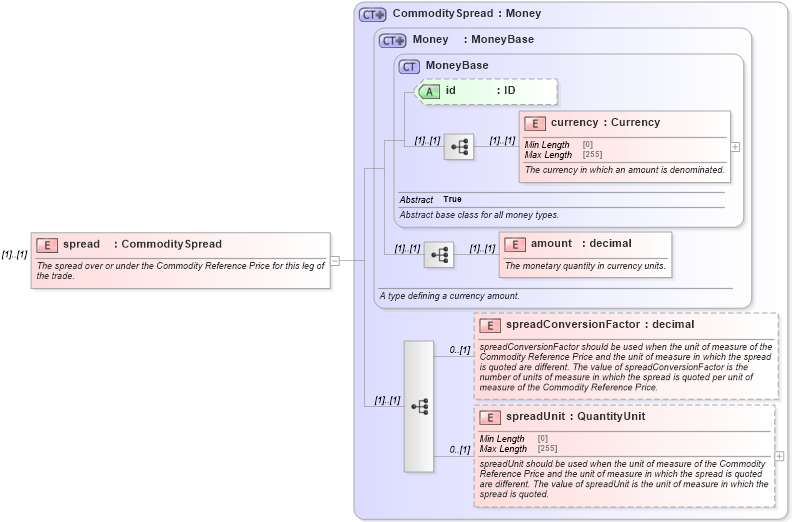

Collapse XSD Schema Diagram:
Drilldown into spreadUnit in schema fpml-com-5-10_xsd3 Drilldown into spreadConversionFactor in schema fpml-com-5-10_xsd3 Drilldown into amount in schema fpml-shared-5-10_xsd5 Drilldown into currency in schema fpml-shared-5-10_xsd5 Drilldown into id in schema fpml-shared-5-10_xsd5 Drilldown into MoneyBase in schema fpml-shared-5-10_xsd5 Drilldown into Money in schema fpml-shared-5-10_xsd5 Drilldown into CommoditySpread in schema fpml-com-5-10_xsd3XSD Diagram of spread in schema fpml-com-5-10_xsd3 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="spread" type="CommoditySpread">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The spread over or under the Commodity Reference Price for this leg of the trade.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
currency nsF:currency (1) (1)
amount nsF:amount (1) (1)
spreadConversionFactor nsF:spreadConversionFactor 0 (1)
spreadUnit nsF:spreadUnit 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsF:id (Optional)
Collapse Derivation Tree:
