Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: spreadStep
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsE:CommoditySpread
Containing Schema: fpml-com-5-10.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
The spread per Calculation Period. There must be a spread step specified for each Calculation Period, regardless of whether the spread changes or remains the same between periods.

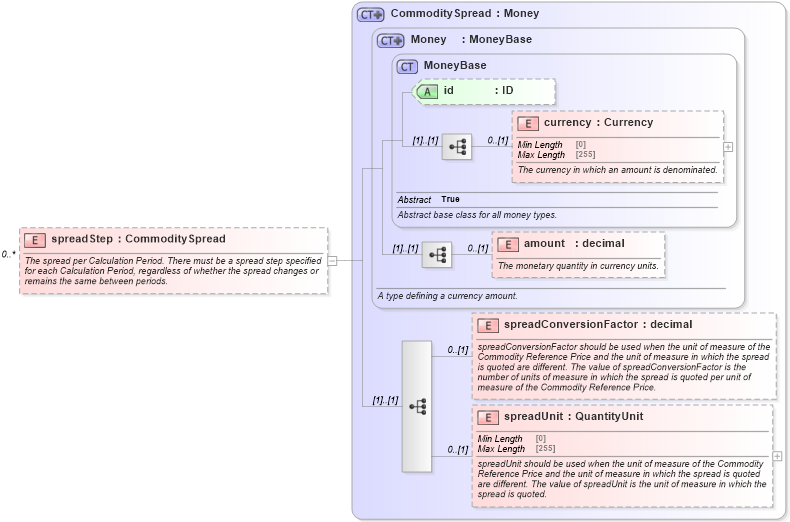

Collapse XSD Schema Diagram:
Drilldown into spreadUnit in schema fpml-com-5-10_xsd2 Drilldown into spreadConversionFactor in schema fpml-com-5-10_xsd2 Drilldown into amount in schema fpml-shared-5-10_xsd4 Drilldown into currency in schema fpml-shared-5-10_xsd4 Drilldown into id in schema fpml-shared-5-10_xsd4 Drilldown into MoneyBase in schema fpml-shared-5-10_xsd4 Drilldown into Money in schema fpml-shared-5-10_xsd4 Drilldown into CommoditySpread in schema fpml-com-5-10_xsd2XSD Diagram of spreadStep in schema fpml-com-5-10_xsd2 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="spreadStep" type="CommoditySpread" minOccurs="0" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The spread per Calculation Period. There must be a spread step specified for each Calculation Period, regardless of whether the spread changes or remains the same between periods.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
currency nsE:currency 0 (1)
amount nsE:amount 0 (1)
spreadConversionFactor nsE:spreadConversionFactor 0 (1)
spreadUnit nsE:spreadUnit 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsE:id (Optional)
Collapse Derivation Tree:
