Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: StandardCreditSupportAnnexBase
Namespace: http://www.fpml.org/FpML-5/legal
Type: nsB:ContractualDocument
Containing Schema: fpml-legal-5-10.xsd
Abstract True
Documentation:
The base SCSA implementation.

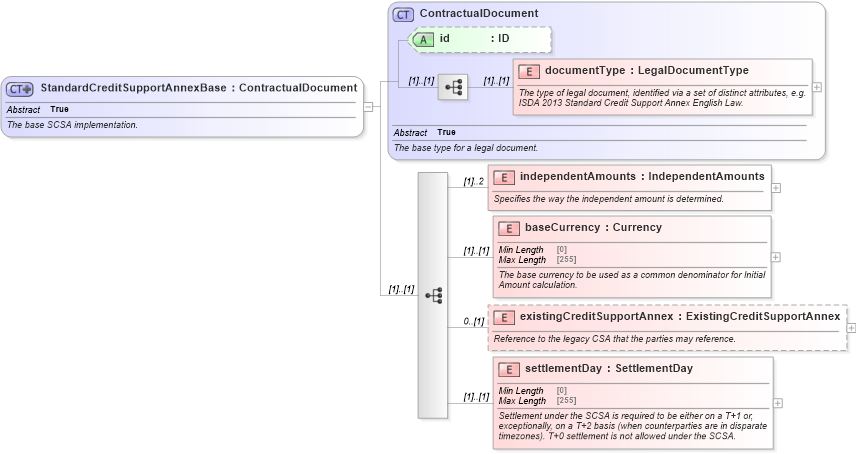

Collapse XSD Schema Diagram:
Drilldown into settlementDay in schema fpml-legal-5-10_xsd Drilldown into existingCreditSupportAnnex in schema fpml-legal-5-10_xsd Drilldown into baseCurrency in schema fpml-legal-5-10_xsd Drilldown into independentAmounts in schema fpml-legal-5-10_xsd Drilldown into documentType in schema fpml-legal-5-10_xsd Drilldown into id in schema fpml-legal-5-10_xsd Drilldown into ContractualDocument in schema fpml-legal-5-10_xsdXSD Diagram of StandardCreditSupportAnnexBase in schema fpml-legal-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="StandardCreditSupportAnnexBase" abstract="true">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The base SCSA implementation.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="ContractualDocument">
            <xsd:sequence>
                <xsd:element name="independentAmounts" type="IndependentAmounts" maxOccurs="2">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">Specifies the way the independent amount is determined.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="baseCurrency" type="Currency">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">The base currency to be used as a common denominator for Initial Amount calculation.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="existingCreditSupportAnnex" type="ExistingCreditSupportAnnex" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">Reference to the legacy CSA that the parties may reference.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="settlementDay" type="SettlementDay">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">Settlement under the SCSA is required to be either on a T+1 or, exceptionally, on a T+2 basis (when counterparties are in disparate timezones). T+0 settlement is not allowed under the SCSA.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
documentType nsB:documentType (1) (1)
independentAmounts nsB:independentAmounts (1) 2
baseCurrency nsB:baseCurrency (1) (1)
existingCreditSupportAnnex nsB:existingCreditSupportAnnex 0 (1)
settlementDay nsB:settlementDay (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsB:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsB:StandardCreditSupportAnnex2013EnglishLaw, nsB:StandardCreditSupportAnnex2013NewYorkLaw, nsB:StandardCreditSupportAnnex2014EnglishLaw, nsB:StandardCreditSupportAnnex2014NewYorkLaw, nsB:standardCsa
