Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: step
Namespace: http://www.fpml.org/FpML-5/confirmation
Type: nsA:Step
Containing Schema: fpml-shared-5-10.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
The schedule of step date and value pairs. On each step date the associated step value becomes effective A list of steps may be ordered in the document by ascending step date. An FpML document containing an unordered list of steps is still regarded as a conformant document.

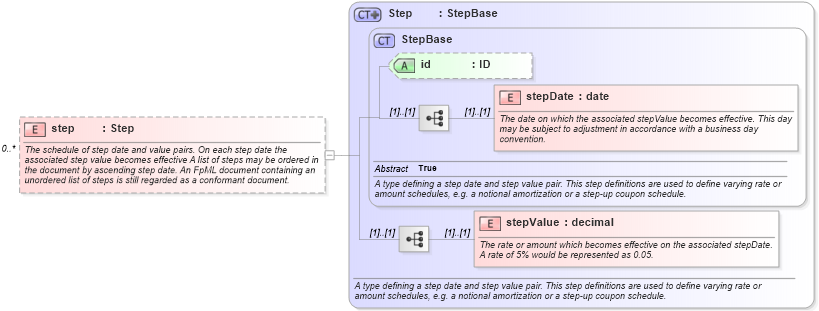

Collapse XSD Schema Diagram:
Drilldown into stepValue in schema fpml-shared-5-10_xsd Drilldown into stepDate in schema fpml-shared-5-10_xsd Drilldown into id in schema fpml-shared-5-10_xsd Drilldown into StepBase in schema fpml-shared-5-10_xsd Drilldown into Step in schema fpml-shared-5-10_xsdXSD Diagram of step in schema fpml-shared-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="step" type="Step" minOccurs="0" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The schedule of step date and value pairs. On each step date the associated step value becomes effective A list of steps may be ordered in the document by ascending step date. An FpML document containing an unordered list of steps is still regarded as a conformant document.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
stepDate nsA:stepDate (1) (1)
stepValue nsA:stepValue (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
Collapse Derivation Tree:
