Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: StepBase
Namespace: http://www.fpml.org/FpML-5/pretrade
Containing Schema: fpml-shared-5-10.xsd
Abstract True
Documentation:
A type defining a step date and step value pair. This step definitions are used to define varying rate or amount schedules, e.g. a notional amortization or a step-up coupon schedule.

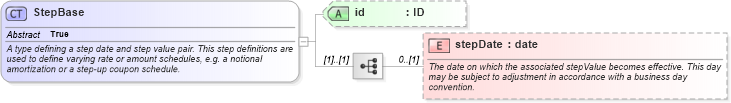

Collapse XSD Schema Diagram:
Drilldown into stepDate in schema fpml-shared-5-10_xsd2 Drilldown into id in schema fpml-shared-5-10_xsd2XSD Diagram of StepBase in schema fpml-shared-5-10_xsd2 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="StepBase" abstract="true">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A type defining a step date and step value pair. This step definitions are used to define varying rate or amount schedules, e.g. a notional amortization or a step-up coupon schedule.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="stepDate" type="xsd:date" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The date on which the associated stepValue becomes effective. This day may be subject to adjustment in accordance with a business day convention.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
    <xsd:attribute name="id" type="xsd:ID" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
stepDate nsC:stepDate 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsC:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsC:NonNegativeStep, nsC:Step
