Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: strike
Namespace: http://www.fpml.org/FpML-5/recordkeeping
Type: nsD:DualCurrencyStrikePrice
Containing Schema: fpml-fx-5-10.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
The rate at which the deposit will be converted to the Alternate currency, in the event that the spot rate is strictly lower than the strike rate at the specified fixing date and time.

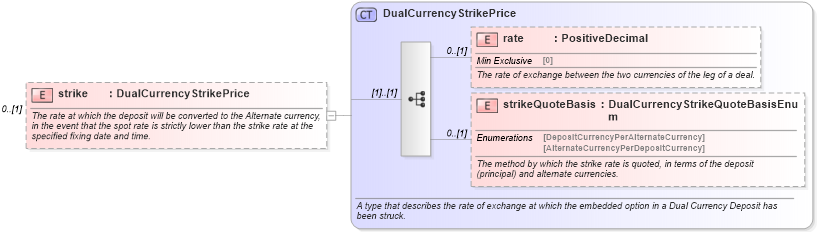

Collapse XSD Schema Diagram:
Drilldown into strikeQuoteBasis in schema fpml-fx-5-10_xsd2 Drilldown into rate in schema fpml-fx-5-10_xsd2 Drilldown into DualCurrencyStrikePrice in schema fpml-fx-5-10_xsd2XSD Diagram of strike in schema fpml-fx-5-10_xsd2 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="strike" type="DualCurrencyStrikePrice" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The rate at which the deposit will be converted to the Alternate currency, in the event that the spot rate is strictly lower than the strike rate at the specified fixing date and time.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
rate nsD:rate 0 (1)
strikeQuoteBasis nsD:strikeQuoteBasis 0 (1)
Collapse Derivation Tree:
