Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: StrikeSchedule
Namespace: http://www.fpml.org/FpML-5/transparency
Type: nsF:Schedule
Containing Schema: fpml-shared-5-10.xsd
Abstract
Documentation:
A type describing a schedule of cap or floor rates.

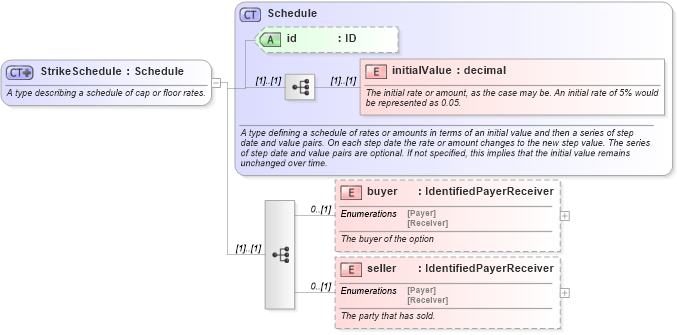

Collapse XSD Schema Diagram:
Drilldown into seller in schema fpml-shared-5-10_xsd5 Drilldown into buyer in schema fpml-shared-5-10_xsd5 Drilldown into initialValue in schema fpml-shared-5-10_xsd5 Drilldown into id in schema fpml-shared-5-10_xsd5 Drilldown into Schedule in schema fpml-shared-5-10_xsd5XSD Diagram of StrikeSchedule in schema fpml-shared-5-10_xsd5 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="StrikeSchedule">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A type describing a schedule of cap or floor rates.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="Schedule">
            <xsd:sequence>
                <xsd:element name="buyer" type="IdentifiedPayerReceiver" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">The buyer of the option</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="seller" type="IdentifiedPayerReceiver" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">The party that has sold.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
initialValue nsF:initialValue (1) (1)
buyer nsF:buyer 0 (1)
seller nsF:seller 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsF:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsF:capRateSchedule, nsF:floorRateSchedule
