Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: swaption
Namespace: http://www.fpml.org/FpML-5/recordkeeping
Type: nsD:Swaption
Containing Schema: fpml-ird-5-10.xsd
Abstract
Documentation:
A swaption product definition.

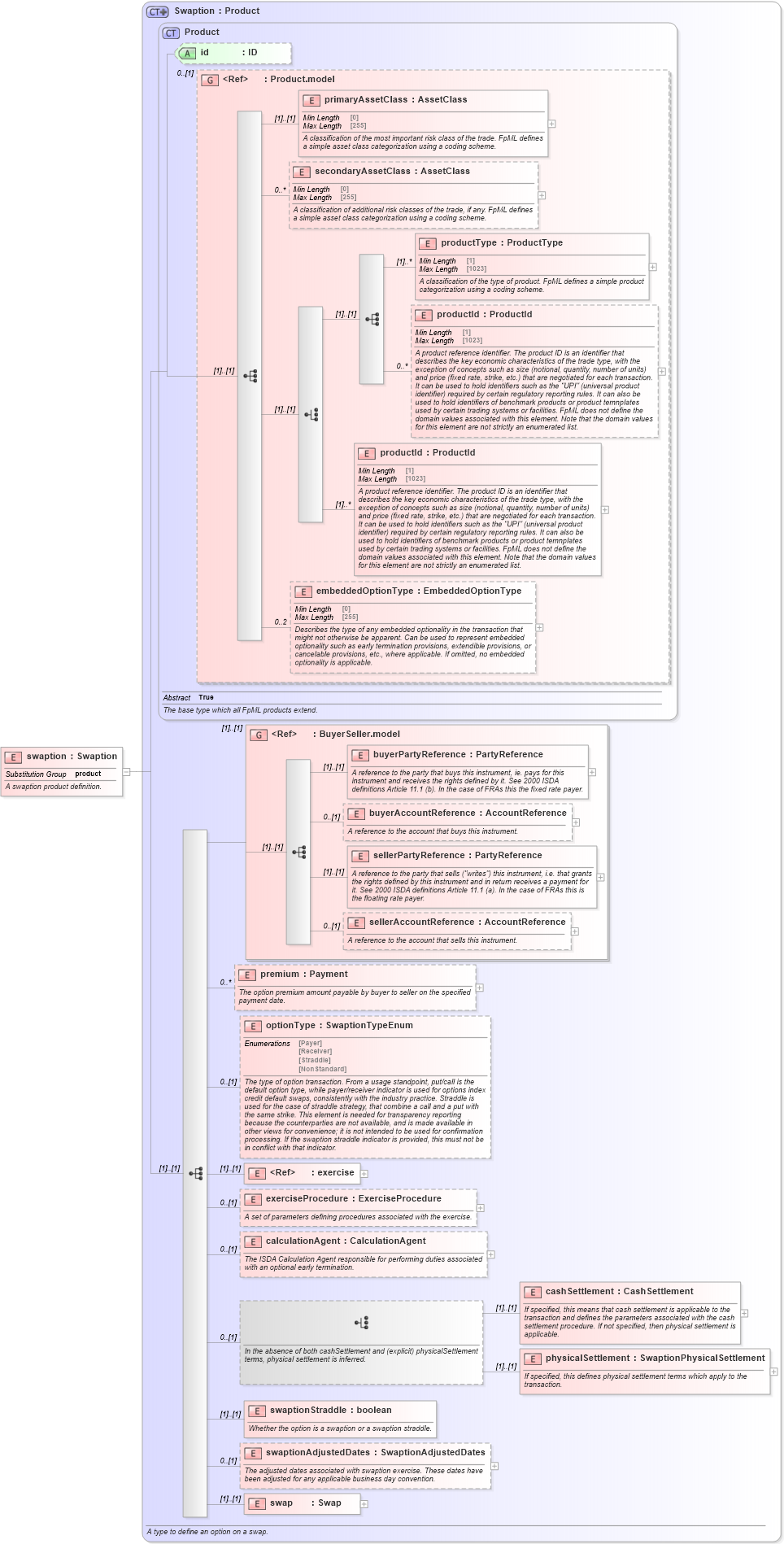

Collapse XSD Schema Diagram:
Drilldown into swap in schema fpml-ird-5-10_xsd2 Drilldown into swaptionAdjustedDates in schema fpml-ird-5-10_xsd2 Drilldown into swaptionStraddle in schema fpml-ird-5-10_xsd2 Drilldown into physicalSettlement in schema fpml-ird-5-10_xsd2 Drilldown into cashSettlement in schema fpml-ird-5-10_xsd2 Drilldown into calculationAgent in schema fpml-ird-5-10_xsd2 Drilldown into exerciseProcedure in schema fpml-ird-5-10_xsd2 Drilldown into exercise in schema fpml-shared-5-10_xsd3 Drilldown into optionType in schema fpml-ird-5-10_xsd2 Drilldown into premium in schema fpml-ird-5-10_xsd2 Drilldown into sellerAccountReference in schema fpml-shared-5-10_xsd3 Drilldown into sellerPartyReference in schema fpml-shared-5-10_xsd3 Drilldown into buyerAccountReference in schema fpml-shared-5-10_xsd3 Drilldown into buyerPartyReference in schema fpml-shared-5-10_xsd3 Drilldown into BuyerSeller.model in schema fpml-shared-5-10_xsd3 Drilldown into embeddedOptionType in schema fpml-shared-5-10_xsd3 Drilldown into productId in schema fpml-shared-5-10_xsd3 Drilldown into productId in schema fpml-shared-5-10_xsd3 Drilldown into productType in schema fpml-shared-5-10_xsd3 Drilldown into secondaryAssetClass in schema fpml-shared-5-10_xsd3 Drilldown into primaryAssetClass in schema fpml-shared-5-10_xsd3 Drilldown into Product.model in schema fpml-shared-5-10_xsd3 Drilldown into id in schema fpml-shared-5-10_xsd3 Drilldown into Product in schema fpml-shared-5-10_xsd3 Drilldown into Swaption in schema fpml-ird-5-10_xsd2XSD Diagram of swaption in schema fpml-ird-5-10_xsd2 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="swaption" type="Swaption" substitutionGroup="product">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A swaption product definition.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
primaryAssetClass nsD:primaryAssetClass (1) (1)
secondaryAssetClass nsD:secondaryAssetClass 0 unbounded
productType nsD:productType (1) unbounded
productId nsD:productId 0 unbounded
productId nsD:productId (1) unbounded
embeddedOptionType nsD:embeddedOptionType 0 2
buyerPartyReference nsD:buyerPartyReference (1) (1)
buyerAccountReference nsD:buyerAccountReference 0 (1)
sellerPartyReference nsD:sellerPartyReference (1) (1)
sellerAccountReference nsD:sellerAccountReference 0 (1)
premium nsD:premium 0 unbounded
optionType nsD:optionType 0 (1)
exercise nsD:exercise (1) (1)
exerciseProcedure nsD:exerciseProcedure 0 (1)
calculationAgent nsD:calculationAgent 0 (1)
cashSettlement nsD:cashSettlement (1) (1)
physicalSettlement nsD:physicalSettlement (1) (1)
swaptionStraddle nsD:swaptionStraddle (1) (1)
swaptionAdjustedDates nsD:swaptionAdjustedDates 0 (1)
swap nsD:swap (1) (1)
<xs:group> nsD:BuyerSeller.model (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsD:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsD:product
