Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: SwaptionPhysicalSettlement
Namespace: http://www.fpml.org/FpML-5/confirmation
Containing Schema: fpml-shared-5-10.xsd
Abstract

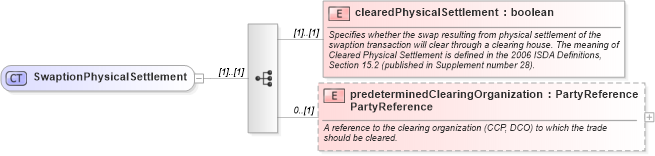

Collapse XSD Schema Diagram:
Drilldown into predeterminedClearingOrganizationPartyReference in schema fpml-shared-5-10_xsd Drilldown into clearedPhysicalSettlement in schema fpml-shared-5-10_xsdXSD Diagram of SwaptionPhysicalSettlement in schema fpml-shared-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="SwaptionPhysicalSettlement">
    <xsd:sequence>
        <xsd:element name="clearedPhysicalSettlement" type="xsd:boolean">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">Specifies whether the swap resulting from physical settlement of the swaption transaction will clear through a clearing house. The meaning of Cleared Physical Settlement is defined in the 2006 ISDA Definitions, Section 15.2 (published in Supplement number 28).</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="predeterminedClearingOrganizationPartyReference" type="PartyReference" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">A reference to the clearing organization (CCP, DCO) to which the trade should be cleared.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
clearedPhysicalSettlement nsA:clearedPhysicalSettlement (1) (1)
predeterminedClearingOrganizationPartyReference nsA:predeterminedClearingOrganizationPartyReference 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:clearingInstructions, nsA:clearingInstructions, nsA:clearingInstructions, nsA:clearingInstructionsnsA:physicalSettlement,
