Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: swapUnwindValue
Namespace: http://www.fpml.org/FpML-5/transparency
Type: nsF:SwapCurveValuation
Containing Schema: fpml-bond-option-5-10.xsd
MinOccurs 0
MaxOccurs (1)
Abstract

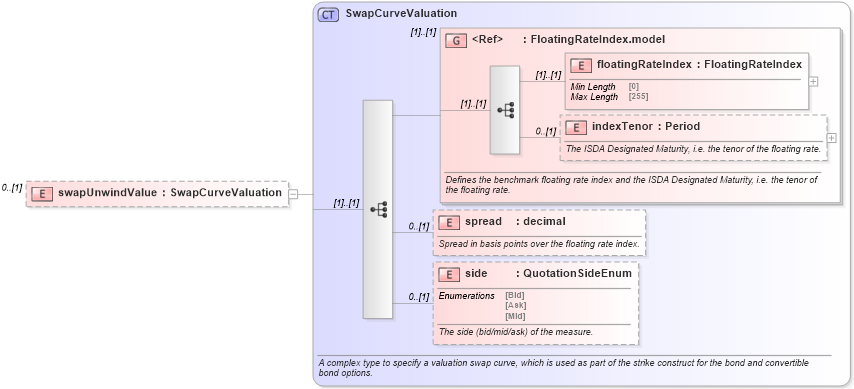

Collapse XSD Schema Diagram:
Drilldown into side in schema fpml-bond-option-5-10_xsd3 Drilldown into spread in schema fpml-bond-option-5-10_xsd3 Drilldown into indexTenor in schema fpml-shared-5-10_xsd5 Drilldown into floatingRateIndex in schema fpml-shared-5-10_xsd5 Drilldown into FloatingRateIndex.model in schema fpml-shared-5-10_xsd5 Drilldown into SwapCurveValuation in schema fpml-bond-option-5-10_xsd3XSD Diagram of swapUnwindValue in schema fpml-bond-option-5-10_xsd3 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="swapUnwindValue" type="SwapCurveValuation" minOccurs="0" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
floatingRateIndex nsF:floatingRateIndex (1) (1)
indexTenor nsF:indexTenor 0 (1)
spread nsF:spread 0 (1)
side nsF:side 0 (1)
<xs:group> nsF:FloatingRateIndex.model (1) (1)
Collapse Derivation Tree:
