Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: touch
Namespace: http://www.fpml.org/FpML-5/confirmation
Type: nsA:FxTouch
Containing Schema: fpml-fx-5-10.xsd
MinOccurs (1)
MaxOccurs unbounded
Abstract
Documentation:
Defines one or more conditions underwhich the option will payout if exercisable.

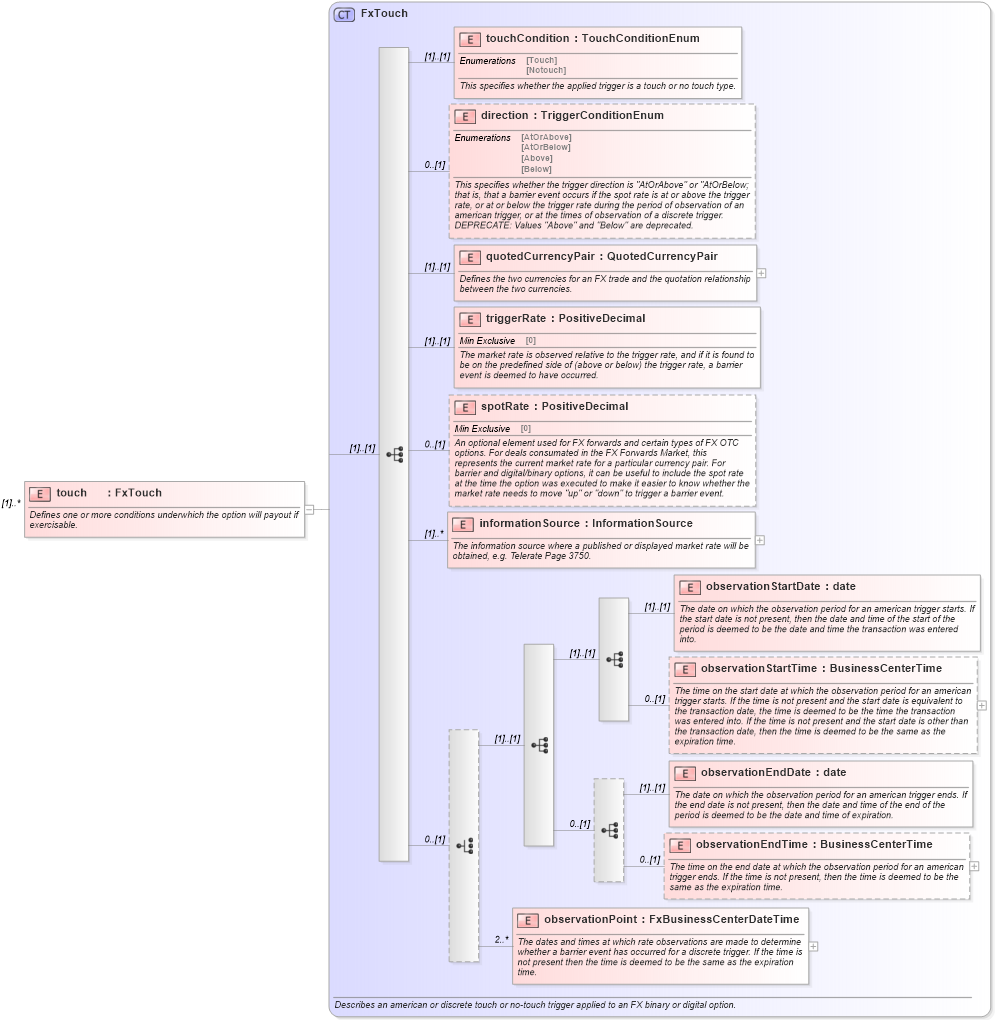

Collapse XSD Schema Diagram:
Drilldown into observationPoint in schema fpml-fx-5-10_xsd Drilldown into observationEndTime in schema fpml-fx-5-10_xsd Drilldown into observationEndDate in schema fpml-fx-5-10_xsd Drilldown into observationStartTime in schema fpml-fx-5-10_xsd Drilldown into observationStartDate in schema fpml-fx-5-10_xsd Drilldown into informationSource in schema fpml-fx-5-10_xsd Drilldown into spotRate in schema fpml-fx-5-10_xsd Drilldown into triggerRate in schema fpml-fx-5-10_xsd Drilldown into quotedCurrencyPair in schema fpml-fx-5-10_xsd Drilldown into direction in schema fpml-fx-5-10_xsd Drilldown into touchCondition in schema fpml-fx-5-10_xsd Drilldown into FxTouch in schema fpml-fx-5-10_xsdXSD Diagram of touch in schema fpml-fx-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="touch" type="FxTouch" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Defines one or more conditions underwhich the option will payout if exercisable.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
touchCondition nsA:touchCondition (1) (1)
direction nsA:direction 0 (1)
quotedCurrencyPair nsA:quotedCurrencyPair (1) (1)
triggerRate nsA:triggerRate (1) (1)
spotRate nsA:spotRate 0 (1)
informationSource nsA:informationSource (1) unbounded
observationStartDate nsA:observationStartDate (1) (1)
observationStartTime nsA:observationStartTime 0 (1)
observationEndDate nsA:observationEndDate (1) (1)
observationEndTime nsA:observationEndTime 0 (1)
observationPoint nsA:observationPoint 2 unbounded
Collapse Derivation Tree:
