Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: touch
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsE:FxTouch
Containing Schema: fpml-fx-5-10.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
Defines one or more conditions underwhich the option will payout if exercisable.

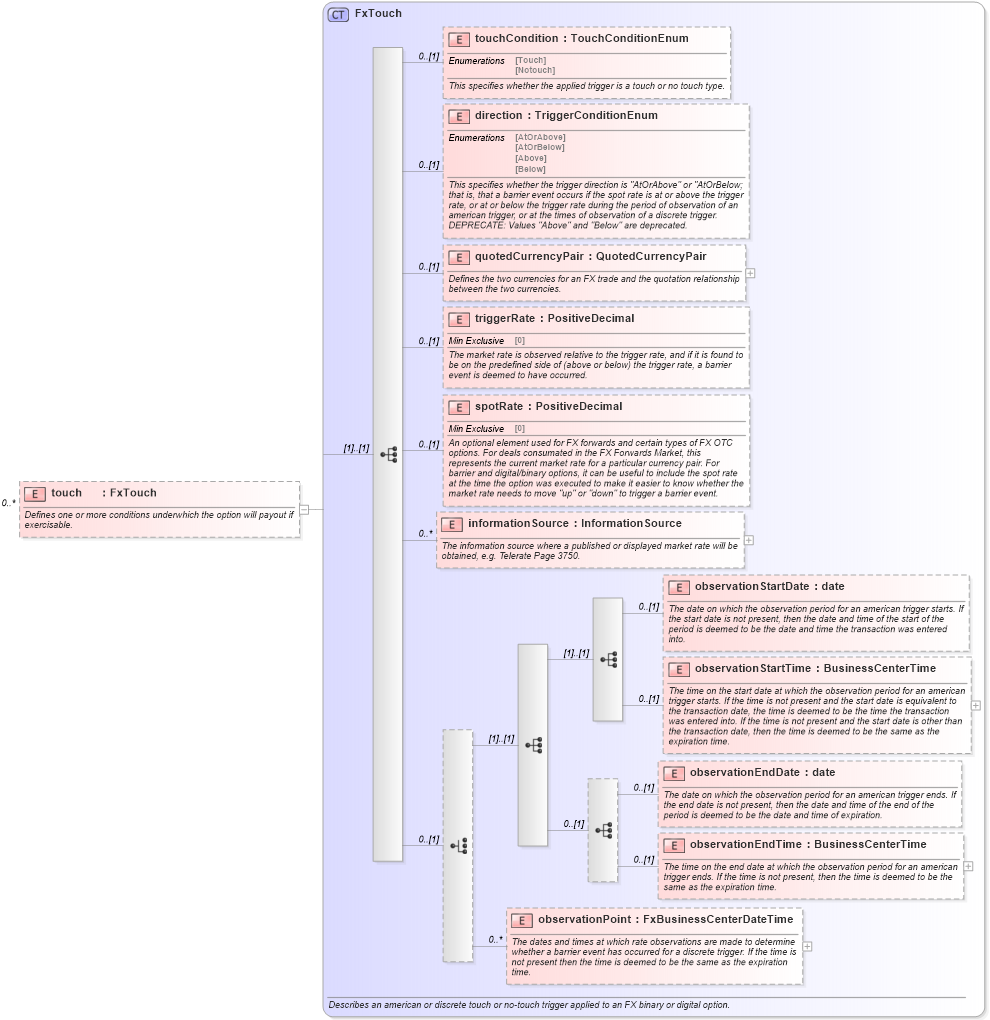

Collapse XSD Schema Diagram:
Drilldown into observationPoint in schema fpml-fx-5-10_xsd3 Drilldown into observationEndTime in schema fpml-fx-5-10_xsd3 Drilldown into observationEndDate in schema fpml-fx-5-10_xsd3 Drilldown into observationStartTime in schema fpml-fx-5-10_xsd3 Drilldown into observationStartDate in schema fpml-fx-5-10_xsd3 Drilldown into informationSource in schema fpml-fx-5-10_xsd3 Drilldown into spotRate in schema fpml-fx-5-10_xsd3 Drilldown into triggerRate in schema fpml-fx-5-10_xsd3 Drilldown into quotedCurrencyPair in schema fpml-fx-5-10_xsd3 Drilldown into direction in schema fpml-fx-5-10_xsd3 Drilldown into touchCondition in schema fpml-fx-5-10_xsd3 Drilldown into FxTouch in schema fpml-fx-5-10_xsd3XSD Diagram of touch in schema fpml-fx-5-10_xsd3 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="touch" type="FxTouch" minOccurs="0" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Defines one or more conditions underwhich the option will payout if exercisable.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
touchCondition nsE:touchCondition 0 (1)
direction nsE:direction 0 (1)
quotedCurrencyPair nsE:quotedCurrencyPair 0 (1)
triggerRate nsE:triggerRate 0 (1)
spotRate nsE:spotRate 0 (1)
informationSource nsE:informationSource 0 unbounded
observationStartDate nsE:observationStartDate 0 (1)
observationStartTime nsE:observationStartTime 0 (1)
observationEndDate nsE:observationEndDate 0 (1)
observationEndTime nsE:observationEndTime 0 (1)
observationPoint nsE:observationPoint 0 unbounded
Collapse Derivation Tree:
