Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: TradeNotionalChange
Namespace: http://www.fpml.org/FpML-5/transparency
Type: nsF:TradeChangeBase
Containing Schema: fpml-business-events-5-10.xsd
Abstract
Documentation:
A structure describing a change to the size of a trade.

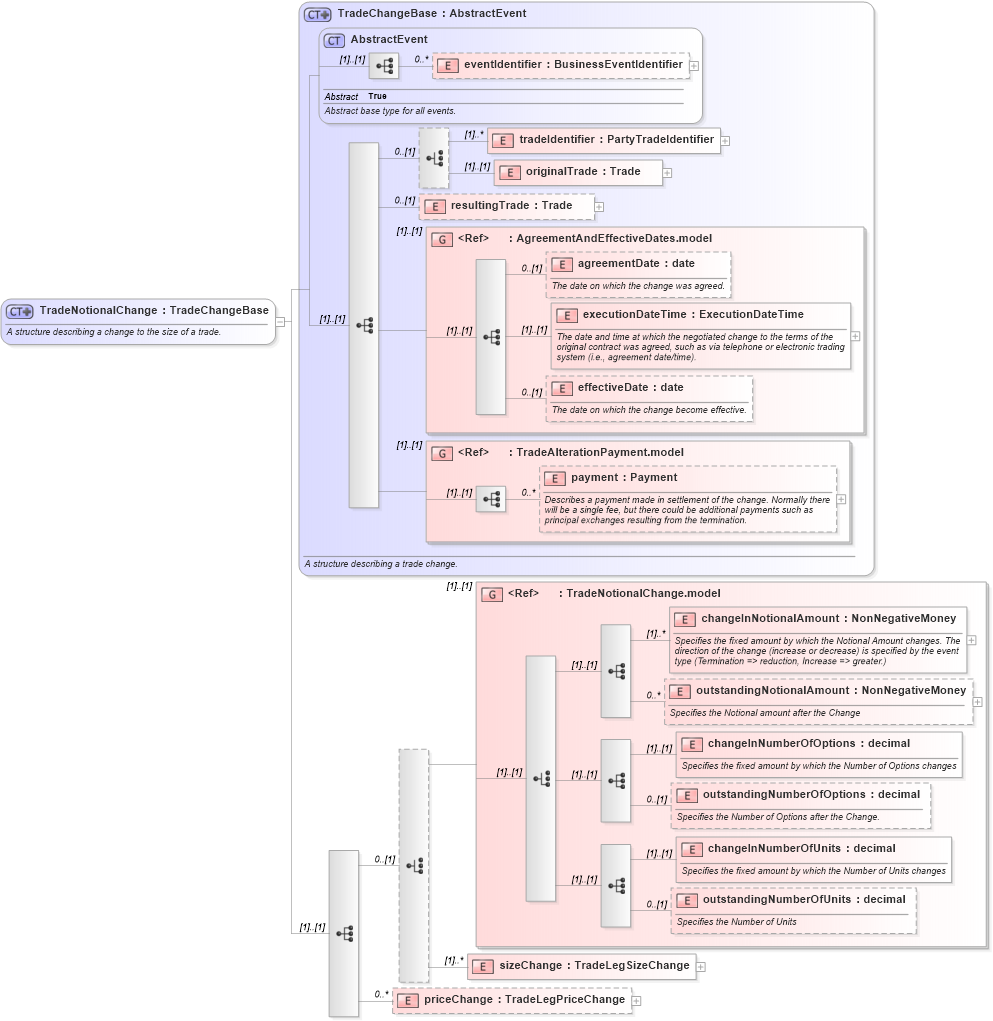

Collapse XSD Schema Diagram:
Drilldown into priceChange in schema fpml-business-events-5-10_xsd4 Drilldown into sizeChange in schema fpml-business-events-5-10_xsd4 Drilldown into outstandingNumberOfUnits in schema fpml-business-events-5-10_xsd4 Drilldown into changeInNumberOfUnits in schema fpml-business-events-5-10_xsd4 Drilldown into outstandingNumberOfOptions in schema fpml-business-events-5-10_xsd4 Drilldown into changeInNumberOfOptions in schema fpml-business-events-5-10_xsd4 Drilldown into outstandingNotionalAmount in schema fpml-business-events-5-10_xsd4 Drilldown into changeInNotionalAmount in schema fpml-business-events-5-10_xsd4 Drilldown into TradeNotionalChange.model in schema fpml-business-events-5-10_xsd4 Drilldown into payment in schema fpml-business-events-5-10_xsd4 Drilldown into TradeAlterationPayment.model in schema fpml-business-events-5-10_xsd4 Drilldown into effectiveDate in schema fpml-business-events-5-10_xsd4 Drilldown into executionDateTime in schema fpml-business-events-5-10_xsd4 Drilldown into agreementDate in schema fpml-business-events-5-10_xsd4 Drilldown into AgreementAndEffectiveDates.model in schema fpml-business-events-5-10_xsd4 Drilldown into resultingTrade in schema fpml-business-events-5-10_xsd4 Drilldown into originalTrade in schema fpml-business-events-5-10_xsd4 Drilldown into tradeIdentifier in schema fpml-business-events-5-10_xsd4 Drilldown into eventIdentifier in schema fpml-business-events-5-10_xsd4 Drilldown into AbstractEvent in schema fpml-business-events-5-10_xsd4 Drilldown into TradeChangeBase in schema fpml-business-events-5-10_xsd4XSD Diagram of TradeNotionalChange in schema fpml-business-events-5-10_xsd4 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="TradeNotionalChange">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A structure describing a change to the size of a trade.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="TradeChangeBase">
            <xsd:sequence>
                <xsd:choice minOccurs="0">
                    <xsd:group ref="TradeNotionalChange.model" fpml-annotation:deprecated="true" fpml-annotation:deprecatedReason="The model could not provide support for linking notionals with product legs. Also, there was limitation in the existing increase and termination events which don’t allow the reporting of both change of units or change of notional amount as required for dividend swaps, for example. Instead, sizeChange, should be used." xmlns:fpml-annotation="http://www.fpml.org/annotation" />
                    <xsd:element name="sizeChange" type="TradeLegSizeChange" maxOccurs="unbounded" />
                </xsd:choice>
                <xsd:element name="priceChange" type="TradeLegPriceChange" minOccurs="0" maxOccurs="unbounded" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
eventIdentifier nsF:eventIdentifier 0 unbounded
tradeIdentifier nsF:tradeIdentifier (1) unbounded
originalTrade nsF:originalTrade (1) (1)
resultingTrade nsF:resultingTrade 0 (1)
agreementDate nsF:agreementDate 0 (1)
executionDateTime nsF:executionDateTime (1) (1)
effectiveDate nsF:effectiveDate 0 (1)
payment nsF:payment 0 unbounded
changeInNotionalAmount nsF:changeInNotionalAmount (1) unbounded
outstandingNotionalAmount nsF:outstandingNotionalAmount 0 unbounded
changeInNumberOfOptions nsF:changeInNumberOfOptions (1) (1)
outstandingNumberOfOptions nsF:outstandingNumberOfOptions 0 (1)
changeInNumberOfUnits nsF:changeInNumberOfUnits (1) (1)
outstandingNumberOfUnits nsF:outstandingNumberOfUnits 0 (1)
sizeChange nsF:sizeChange (1) unbounded
priceChange nsF:priceChange 0 unbounded
<xs:group> nsF:AgreementAndEffectiveDates.model (1) (1)
<xs:group> nsF:TradeAlterationPayment.model (1) (1)
<xs:group> nsF:TradeNotionalChange.model (1) (1)
Collapse Derivation Tree:
Collapse References:
nsF:increase, nsF:termination
