Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: tradePackage
Namespace: http://www.fpml.org/FpML-5/confirmation
Type: nsA:TradePackage
Containing Schema: fpml-business-events-5-10.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract

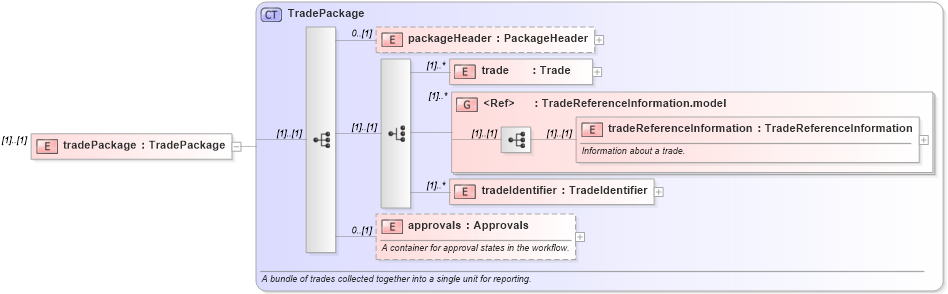

Collapse XSD Schema Diagram:
Drilldown into approvals in schema fpml-business-events-5-10_xsd Drilldown into tradeIdentifier in schema fpml-business-events-5-10_xsd Drilldown into tradeReferenceInformation in schema fpml-business-events-5-10_xsd Drilldown into TradeReferenceInformation.model in schema fpml-business-events-5-10_xsd Drilldown into trade in schema fpml-business-events-5-10_xsd Drilldown into packageHeader in schema fpml-business-events-5-10_xsd Drilldown into TradePackage in schema fpml-business-events-5-10_xsdXSD Diagram of tradePackage in schema fpml-business-events-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="tradePackage" type="TradePackage" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
packageHeader nsA:packageHeader 0 (1)
trade nsA:trade (1) unbounded
tradeReferenceInformation nsA:tradeReferenceInformation (1) (1)
tradeIdentifier nsA:tradeIdentifier (1) unbounded
approvals nsA:approvals 0 (1)
<xs:group> nsA:TradeReferenceInformation.model (1) unbounded
Collapse Derivation Tree:
