Documentation for Financial products Markup Language (FpML®)
Definition Type: Group
Name: TradingAndPostTradeEvents.model
Namespace: http://www.fpml.org/FpML-5/transparency
Containing Schema: fpml-business-events-5-10.xsd
Documentation:
Choice between a trading, a post-trade event, and the extension point additional event

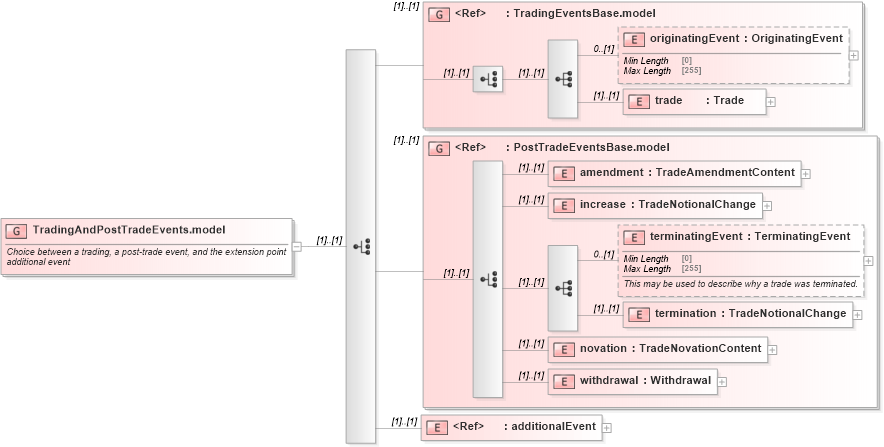

Collapse XSD Schema Diagram:
Drilldown into additionalEvent in schema fpml-business-events-5-10_xsd4 Drilldown into withdrawal in schema fpml-business-events-5-10_xsd4 Drilldown into novation in schema fpml-business-events-5-10_xsd4 Drilldown into termination in schema fpml-business-events-5-10_xsd4 Drilldown into terminatingEvent in schema fpml-business-events-5-10_xsd4 Drilldown into increase in schema fpml-business-events-5-10_xsd4 Drilldown into amendment in schema fpml-business-events-5-10_xsd4 Drilldown into PostTradeEventsBase.model in schema fpml-business-events-5-10_xsd4 Drilldown into trade in schema fpml-business-events-5-10_xsd4 Drilldown into originatingEvent in schema fpml-business-events-5-10_xsd4 Drilldown into TradingEventsBase.model in schema fpml-business-events-5-10_xsd4XSD Diagram of TradingAndPostTradeEvents.model in schema fpml-business-events-5-10_xsd4 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:group name="TradingAndPostTradeEvents.model">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Choice between a trading, a post-trade event, and the extension point additional event</xsd:documentation>
    </xsd:annotation>
    <xsd:choice>
        <xsd:group ref="TradingEventsBase.model" />
        <xsd:group ref="PostTradeEventsBase.model" />
        <xsd:element ref="additionalEvent" />
    </xsd:choice>
</xsd:group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
originatingEvent nsF:originatingEvent 0 (1)
trade nsF:trade (1) (1)
amendment nsF:amendment (1) (1)
increase nsF:increase (1) (1)
terminatingEvent nsF:terminatingEvent 0 (1)
termination nsF:termination (1) (1)
novation nsF:novation (1) (1)
withdrawal nsF:withdrawal (1) (1)
additionalEvent nsF:additionalEvent (1) (1)
<xs:group> nsF:TradingEventsBase.model (1) (1)
<xs:group> nsF:PostTradeEventsBase.model (1) (1)
