Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: trigger
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsE:FxAccrualTrigger
Containing Schema: fpml-fx-accruals-5-10.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
Defines one or more conditions under which the option will payout if exercisable.

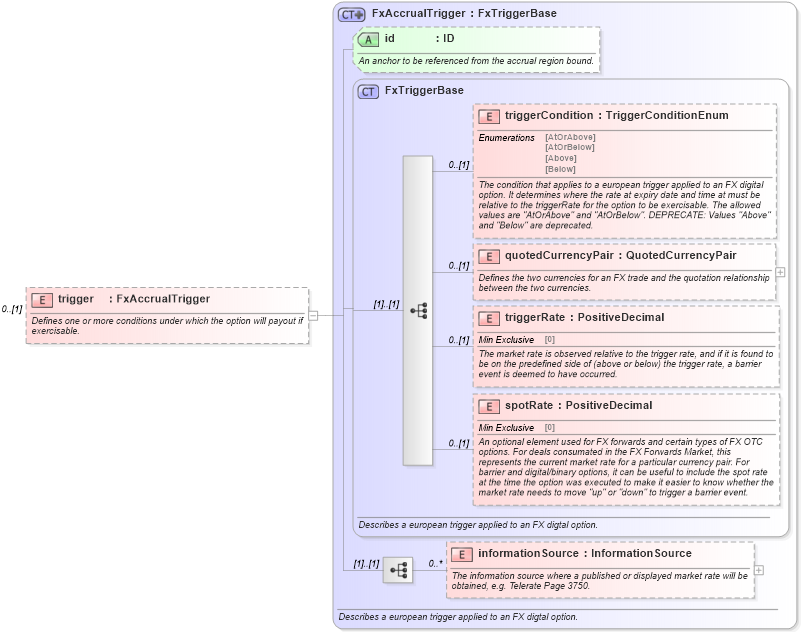

Collapse XSD Schema Diagram:
Drilldown into informationSource in schema fpml-fx-accruals-5-10_xsd2 Drilldown into spotRate in schema fpml-fx-5-10_xsd3 Drilldown into triggerRate in schema fpml-fx-5-10_xsd3 Drilldown into quotedCurrencyPair in schema fpml-fx-5-10_xsd3 Drilldown into triggerCondition in schema fpml-fx-5-10_xsd3 Drilldown into FxTriggerBase in schema fpml-fx-5-10_xsd3 Drilldown into id in schema fpml-fx-accruals-5-10_xsd2 Drilldown into FxAccrualTrigger in schema fpml-fx-accruals-5-10_xsd2XSD Diagram of trigger in schema fpml-fx-accruals-5-10_xsd2 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="trigger" type="FxAccrualTrigger" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Defines one or more conditions under which the option will payout if exercisable.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
triggerCondition nsE:triggerCondition 0 (1)
quotedCurrencyPair nsE:quotedCurrencyPair 0 (1)
triggerRate nsE:triggerRate 0 (1)
spotRate nsE:spotRate 0 (1)
informationSource nsE:informationSource 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id nsE:id (Optional)
Collapse Derivation Tree:
