Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: trigger
Namespace: http://www.fpml.org/FpML-5/transparency
Type: nsF:FxAccrualTrigger
Containing Schema: fpml-fx-accruals-5-10.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
Defines one or more conditions under which the option will payout if exercisable.

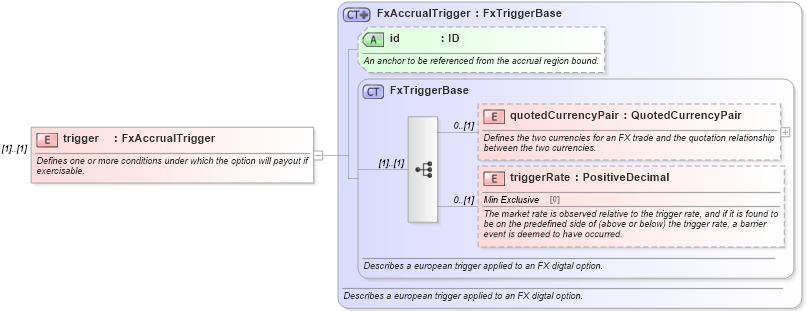

Collapse XSD Schema Diagram:
Drilldown into triggerRate in schema fpml-fx-5-10_xsd4 Drilldown into quotedCurrencyPair in schema fpml-fx-5-10_xsd4 Drilldown into FxTriggerBase in schema fpml-fx-5-10_xsd4 Drilldown into id in schema fpml-fx-accruals-5-10_xsd3 Drilldown into FxAccrualTrigger in schema fpml-fx-accruals-5-10_xsd3XSD Diagram of trigger in schema fpml-fx-accruals-5-10_xsd3 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="trigger" type="FxAccrualTrigger">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Defines one or more conditions under which the option will payout if exercisable.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
quotedCurrencyPair nsF:quotedCurrencyPair 0 (1)
triggerRate nsF:triggerRate 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsF:id (Optional)
Collapse Derivation Tree:
