Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: TriParty
Namespace: http://www.fpml.org/FpML-5/confirmation
Containing Schema: fpml-repo-5-10.xsd
Abstract
Documentation:
The tri-party terms.

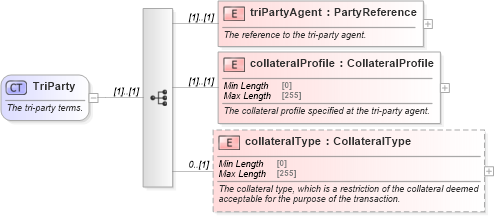

Collapse XSD Schema Diagram:
Drilldown into collateralType in schema fpml-repo-5-10_xsd Drilldown into collateralProfile in schema fpml-repo-5-10_xsd Drilldown into triPartyAgent in schema fpml-repo-5-10_xsdXSD Diagram of TriParty in schema fpml-repo-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="TriParty">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The tri-party terms.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="triPartyAgent" type="PartyReference">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The reference to the tri-party agent.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="collateralProfile" type="CollateralProfile">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The collateral profile specified at the tri-party agent.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="collateralType" type="CollateralType" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The collateral type, which is a restriction of the collateral deemed acceptable for the purpose of the transaction.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
triPartyAgent nsA:triPartyAgent (1) (1)
collateralProfile nsA:collateralProfile (1) (1)
collateralType nsA:collateralType 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:triParty
