Definition Type: Element
Name: underlyer
Namespace: http://www.fpml.org/FpML-5/recordkeeping
Type: nsD:ExchangeTradedContractUnderlyer
Containing Schema: fpml-asset-5-10.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
Underlyer of the option e.g. a listed future.

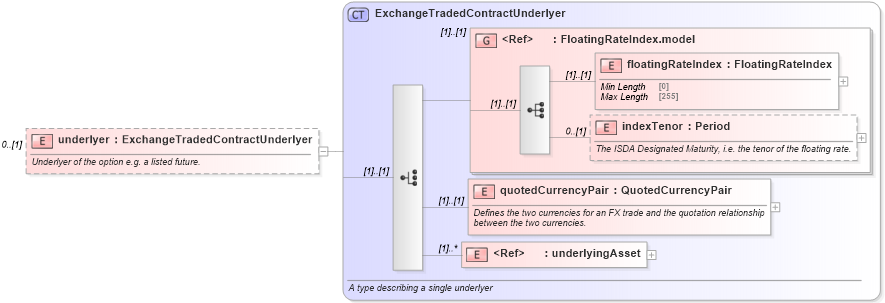

Collapse XSD Schema Diagram:
Drilldown into underlyingAsset in schema fpml-asset-5-10_xsd3 Drilldown into quotedCurrencyPair in schema fpml-asset-5-10_xsd3 Drilldown into indexTenor in schema fpml-shared-5-10_xsd3 Drilldown into floatingRateIndex in schema fpml-shared-5-10_xsd3 Drilldown into FloatingRateIndex.model in schema fpml-shared-5-10_xsd3 Drilldown into ExchangeTradedContractUnderlyer in schema fpml-asset-5-10_xsd3XSD Diagram of underlyer in schema fpml-asset-5-10_xsd3 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="underlyer" type="ExchangeTradedContractUnderlyer" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation>Underlyer of the option e.g. a listed future.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
floatingRateIndex nsD:floatingRateIndex (1) (1)
indexTenor nsD:indexTenor 0 (1)
quotedCurrencyPair nsD:quotedCurrencyPair (1) (1)
underlyingAsset nsD:underlyingAsset (1) unbounded
<xs:group> nsD:FloatingRateIndex.model (1) (1)
Collapse Derivation Tree:
