Definition Type: Element
Name: underlyer
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsE:TradeUnderlyer2
Containing Schema: fpml-generic-5-10.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
The set of underlyers to the trade that can be used in computing the trade's cashflows. If this information is needed to identify the trade, all of the trade's underlyers should be specified, whether or not they figure into the cashflow calculation. Otherwise, only those underlyers used to compute this particular cashflow need be supplied.

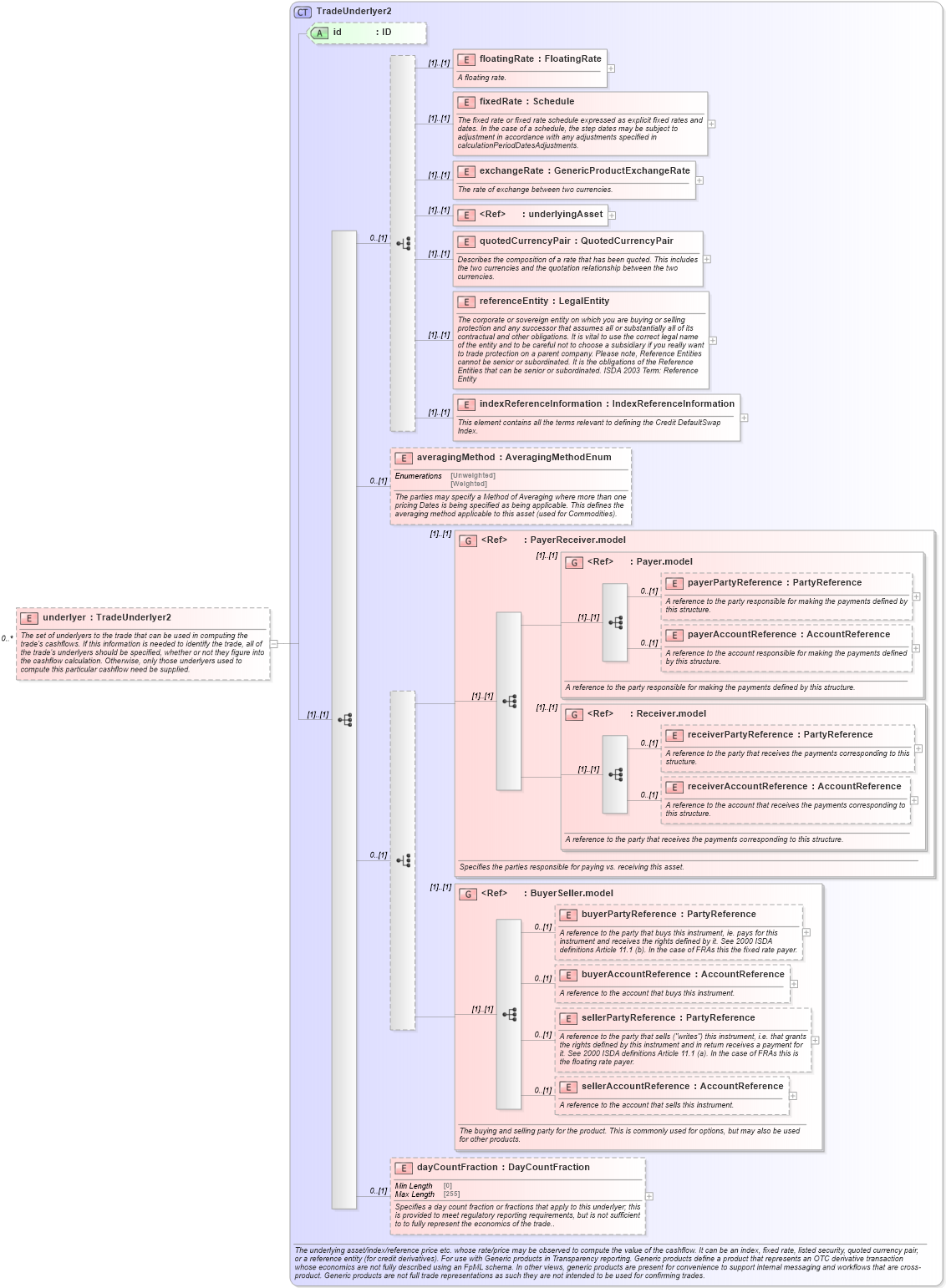

Collapse XSD Schema Diagram:
Drilldown into dayCountFraction in schema fpml-generic-5-10_xsd2 Drilldown into sellerAccountReference in schema fpml-shared-5-10_xsd4 Drilldown into sellerPartyReference in schema fpml-shared-5-10_xsd4 Drilldown into buyerAccountReference in schema fpml-shared-5-10_xsd4 Drilldown into buyerPartyReference in schema fpml-shared-5-10_xsd4 Drilldown into BuyerSeller.model in schema fpml-shared-5-10_xsd4 Drilldown into receiverAccountReference in schema fpml-shared-5-10_xsd4 Drilldown into receiverPartyReference in schema fpml-shared-5-10_xsd4 Drilldown into Receiver.model in schema fpml-shared-5-10_xsd4 Drilldown into payerAccountReference in schema fpml-shared-5-10_xsd4 Drilldown into payerPartyReference in schema fpml-shared-5-10_xsd4 Drilldown into Payer.model in schema fpml-shared-5-10_xsd4 Drilldown into PayerReceiver.model in schema fpml-shared-5-10_xsd4 Drilldown into averagingMethod in schema fpml-generic-5-10_xsd2 Drilldown into indexReferenceInformation in schema fpml-generic-5-10_xsd2 Drilldown into referenceEntity in schema fpml-generic-5-10_xsd2 Drilldown into quotedCurrencyPair in schema fpml-generic-5-10_xsd2 Drilldown into underlyingAsset in schema fpml-asset-5-10_xsd4 Drilldown into exchangeRate in schema fpml-generic-5-10_xsd2 Drilldown into fixedRate in schema fpml-generic-5-10_xsd2 Drilldown into floatingRate in schema fpml-generic-5-10_xsd2 Drilldown into id in schema fpml-generic-5-10_xsd2 Drilldown into TradeUnderlyer2 in schema fpml-generic-5-10_xsd2XSD Diagram of underlyer in schema fpml-generic-5-10_xsd2 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="underlyer" type="TradeUnderlyer2" minOccurs="0" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The set of underlyers to the trade that can be used in computing the trade's cashflows. If this information is needed to identify the trade, all of the trade's underlyers should be specified, whether or not they figure into the cashflow calculation. Otherwise, only those underlyers used to compute this particular cashflow need be supplied.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
floatingRate nsE:floatingRate (1) (1)
fixedRate nsE:fixedRate (1) (1)
exchangeRate nsE:exchangeRate (1) (1)
underlyingAsset nsE:underlyingAsset (1) (1)
quotedCurrencyPair nsE:quotedCurrencyPair (1) (1)
referenceEntity nsE:referenceEntity (1) (1)
indexReferenceInformation nsE:indexReferenceInformation (1) (1)
averagingMethod nsE:averagingMethod 0 (1)
payerPartyReference nsE:payerPartyReference 0 (1)
payerAccountReference nsE:payerAccountReference 0 (1)
receiverPartyReference nsE:receiverPartyReference 0 (1)
receiverAccountReference nsE:receiverAccountReference 0 (1)
buyerPartyReference nsE:buyerPartyReference 0 (1)
buyerAccountReference nsE:buyerAccountReference 0 (1)
sellerPartyReference nsE:sellerPartyReference 0 (1)
sellerAccountReference nsE:sellerAccountReference 0 (1)
dayCountFraction nsE:dayCountFraction 0 (1)
<xs:group> nsE:PayerReceiver.model (1) (1)
<xs:group> nsE:Payer.model (1) (1)
<xs:group> nsE:Receiver.model (1) (1)
<xs:group> nsE:BuyerSeller.model (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsE:id (Optional)
Collapse Derivation Tree:
