Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: underlyer
Namespace: http://www.fpml.org/FpML-5/transparency
Type: nsF:TradeUnderlyer2
Containing Schema: fpml-generic-5-10.xsd
MinOccurs (1)
MaxOccurs unbounded
Abstract
Documentation:
The set of underlyers to the trade that can be used in computing the trade's cashflows. If this information is needed to identify the trade, all of the trade's underlyers should be specified, whether or not they figure into the cashflow calculation. Otherwise, only those underlyers used to compute this particular cashflow need be supplied.

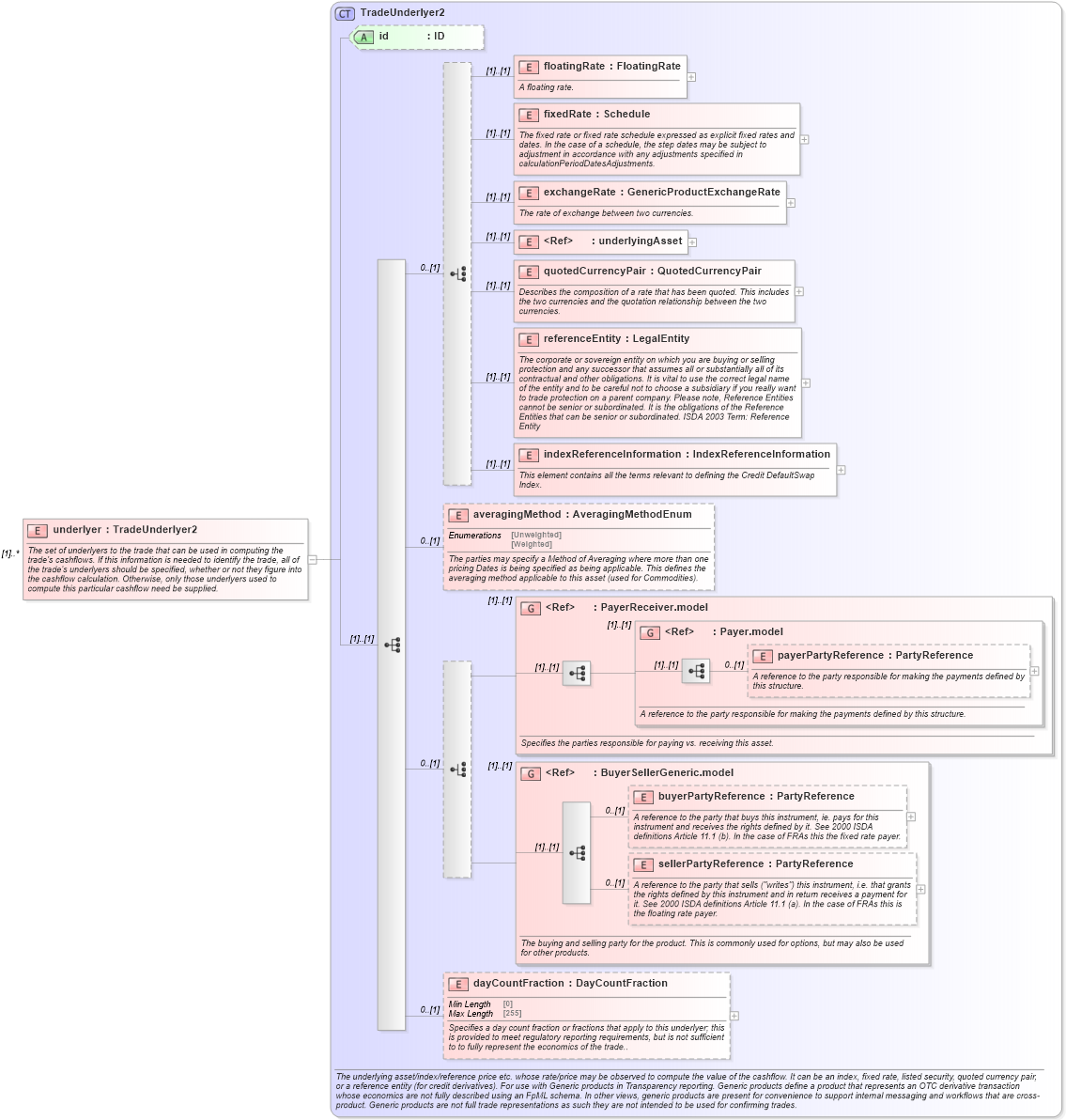

Collapse XSD Schema Diagram:
Drilldown into dayCountFraction in schema fpml-generic-5-10_xsd3 Drilldown into sellerPartyReference in schema fpml-generic-5-10_xsd3 Drilldown into buyerPartyReference in schema fpml-generic-5-10_xsd3 Drilldown into BuyerSellerGeneric.model in schema fpml-generic-5-10_xsd3 Drilldown into payerPartyReference in schema fpml-shared-5-10_xsd5 Drilldown into Payer.model in schema fpml-shared-5-10_xsd5 Drilldown into PayerReceiver.model in schema fpml-shared-5-10_xsd5 Drilldown into averagingMethod in schema fpml-generic-5-10_xsd3 Drilldown into indexReferenceInformation in schema fpml-generic-5-10_xsd3 Drilldown into referenceEntity in schema fpml-generic-5-10_xsd3 Drilldown into quotedCurrencyPair in schema fpml-generic-5-10_xsd3 Drilldown into underlyingAsset in schema fpml-asset-5-10_xsd5 Drilldown into exchangeRate in schema fpml-generic-5-10_xsd3 Drilldown into fixedRate in schema fpml-generic-5-10_xsd3 Drilldown into floatingRate in schema fpml-generic-5-10_xsd3 Drilldown into id in schema fpml-generic-5-10_xsd3 Drilldown into TradeUnderlyer2 in schema fpml-generic-5-10_xsd3XSD Diagram of underlyer in schema fpml-generic-5-10_xsd3 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="underlyer" type="TradeUnderlyer2" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The set of underlyers to the trade that can be used in computing the trade's cashflows. If this information is needed to identify the trade, all of the trade's underlyers should be specified, whether or not they figure into the cashflow calculation. Otherwise, only those underlyers used to compute this particular cashflow need be supplied.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
floatingRate nsF:floatingRate (1) (1)
fixedRate nsF:fixedRate (1) (1)
exchangeRate nsF:exchangeRate (1) (1)
underlyingAsset nsF:underlyingAsset (1) (1)
quotedCurrencyPair nsF:quotedCurrencyPair (1) (1)
referenceEntity nsF:referenceEntity (1) (1)
indexReferenceInformation nsF:indexReferenceInformation (1) (1)
averagingMethod nsF:averagingMethod 0 (1)
payerPartyReference nsF:payerPartyReference 0 (1)
buyerPartyReference nsF:buyerPartyReference 0 (1)
sellerPartyReference nsF:sellerPartyReference 0 (1)
dayCountFraction nsF:dayCountFraction 0 (1)
<xs:group> nsF:PayerReceiver.model (1) (1)
<xs:group> nsF:Payer.model (1) (1)
<xs:group> nsF:BuyerSellerGeneric.model (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsF:id (Optional)
Collapse Derivation Tree:
