Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: underlying
Namespace: http://www.fpml.org/FpML-5/confirmation
Type: nsA:CommodityBasketUnderlyingByPercentage
Containing Schema: fpml-com-5-10.xsd
MinOccurs 2
MaxOccurs unbounded
Abstract
Documentation:
Indicates the role of the option buyer with regard to this underlyer.
Collapse XSD Schema Diagram:

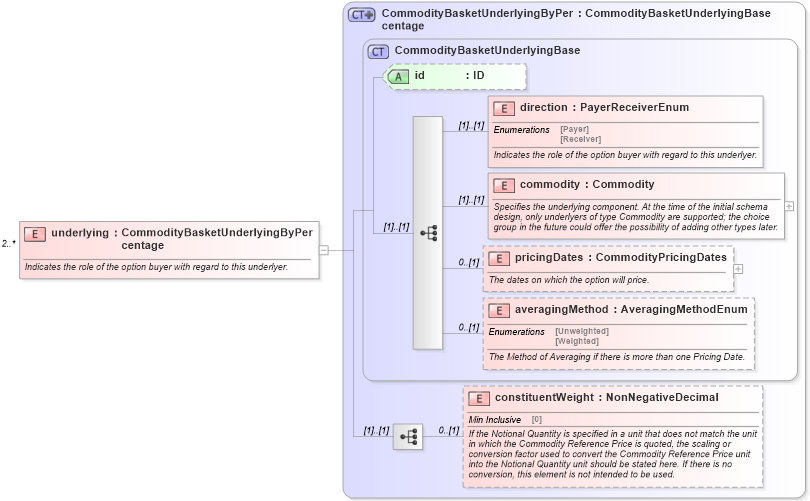

Drilldown into constituentWeight in schema fpml-com-5-10_xsd Drilldown into averagingMethod in schema fpml-com-5-10_xsd Drilldown into pricingDates in schema fpml-com-5-10_xsd Drilldown into commodity in schema fpml-com-5-10_xsd Drilldown into direction in schema fpml-com-5-10_xsd Drilldown into id in schema fpml-com-5-10_xsd Drilldown into CommodityBasketUnderlyingBase in schema fpml-com-5-10_xsd Drilldown into CommodityBasketUnderlyingByPercentage in schema fpml-com-5-10_xsdXSD Diagram of underlying in schema fpml-com-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="underlying" type="CommodityBasketUnderlyingByPercentage" minOccurs="2" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Indicates the role of the option buyer with regard to this underlyer.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
direction nsA:direction (1) (1)
commodity nsA:commodity (1) (1)
pricingDates nsA:pricingDates 0 (1)
averagingMethod nsA:averagingMethod 0 (1)
constituentWeight nsA:constituentWeight 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id Optional
Collapse Derivation Tree:
