Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: underlying
Namespace: http://www.fpml.org/FpML-5/transparency
Type: nsF:CommodityBasketUnderlyingByNotional
Containing Schema: fpml-com-5-10.xsd
MinOccurs (1)
MaxOccurs unbounded
Abstract
Documentation:
Indicates the role of the option buyer with regard to this underlyer.

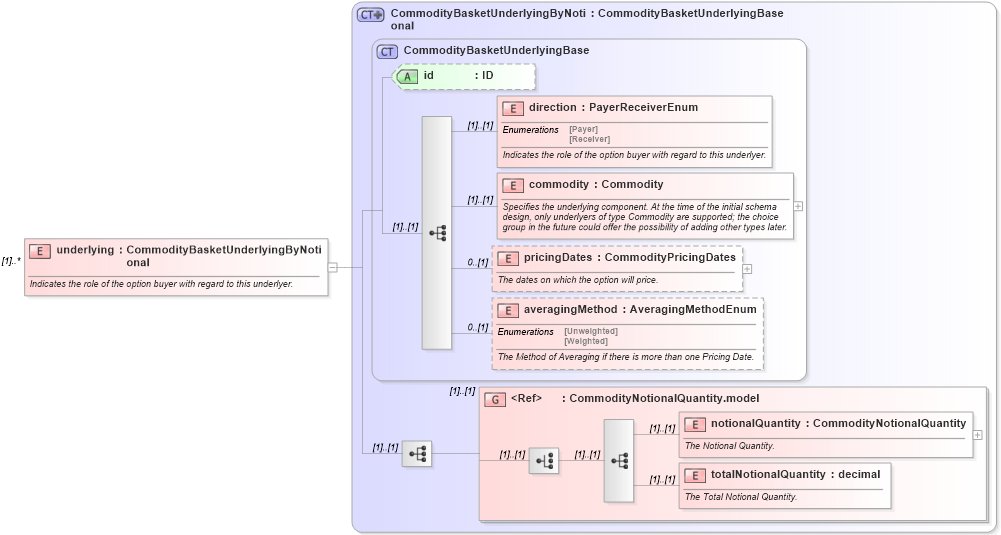

Collapse XSD Schema Diagram:
Drilldown into totalNotionalQuantity in schema fpml-com-5-10_xsd3 Drilldown into notionalQuantity in schema fpml-com-5-10_xsd3 Drilldown into CommodityNotionalQuantity.model in schema fpml-com-5-10_xsd3 Drilldown into averagingMethod in schema fpml-com-5-10_xsd3 Drilldown into pricingDates in schema fpml-com-5-10_xsd3 Drilldown into commodity in schema fpml-com-5-10_xsd3 Drilldown into direction in schema fpml-com-5-10_xsd3 Drilldown into id in schema fpml-com-5-10_xsd3 Drilldown into CommodityBasketUnderlyingBase in schema fpml-com-5-10_xsd3 Drilldown into CommodityBasketUnderlyingByNotional in schema fpml-com-5-10_xsd3XSD Diagram of underlying in schema fpml-com-5-10_xsd3 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="underlying" type="CommodityBasketUnderlyingByNotional" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Indicates the role of the option buyer with regard to this underlyer.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
direction nsF:direction (1) (1)
commodity nsF:commodity (1) (1)
pricingDates nsF:pricingDates 0 (1)
averagingMethod nsF:averagingMethod 0 (1)
notionalQuantity nsF:notionalQuantity (1) (1)
totalNotionalQuantity nsF:totalNotionalQuantity (1) (1)
<xs:group> nsF:CommodityNotionalQuantity.model (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsF:id Optional
Collapse Derivation Tree:
