Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: valuationScenarioReference
Namespace: http://www.fpml.org/FpML-5/recordkeeping
Type: nsD:ValuationScenarioReference
Containing Schema: fpml-riskdef-5-10.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
Reference to the valuation scenario to which this sensitivity definition applies, e.g. a reference to the EOD valuation scenario. If not supplied, this sensitivity set definition is generic to a variety of valuation scenarios.

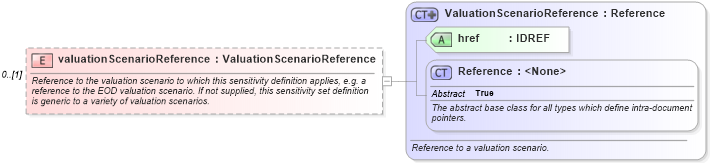

Collapse XSD Schema Diagram:
Drilldown into Reference in schema fpml-shared-5-10_xsd3 Drilldown into href in schema fpml-riskdef-5-10_xsd1 Drilldown into ValuationScenarioReference in schema fpml-riskdef-5-10_xsd1XSD Diagram of valuationScenarioReference in schema fpml-riskdef-5-10_xsd1 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="valuationScenarioReference" type="ValuationScenarioReference" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Reference to the valuation scenario to which this sensitivity definition applies, e.g. a reference to the EOD valuation scenario. If not supplied, this sensitivity set definition is generic to a variety of valuation scenarios.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
href nsD:href Required
Collapse Derivation Tree:
