Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: volatility
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsE:Volatility
Containing Schema: fpml-volatility-swaps-5-10.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
Specifies Volatility.

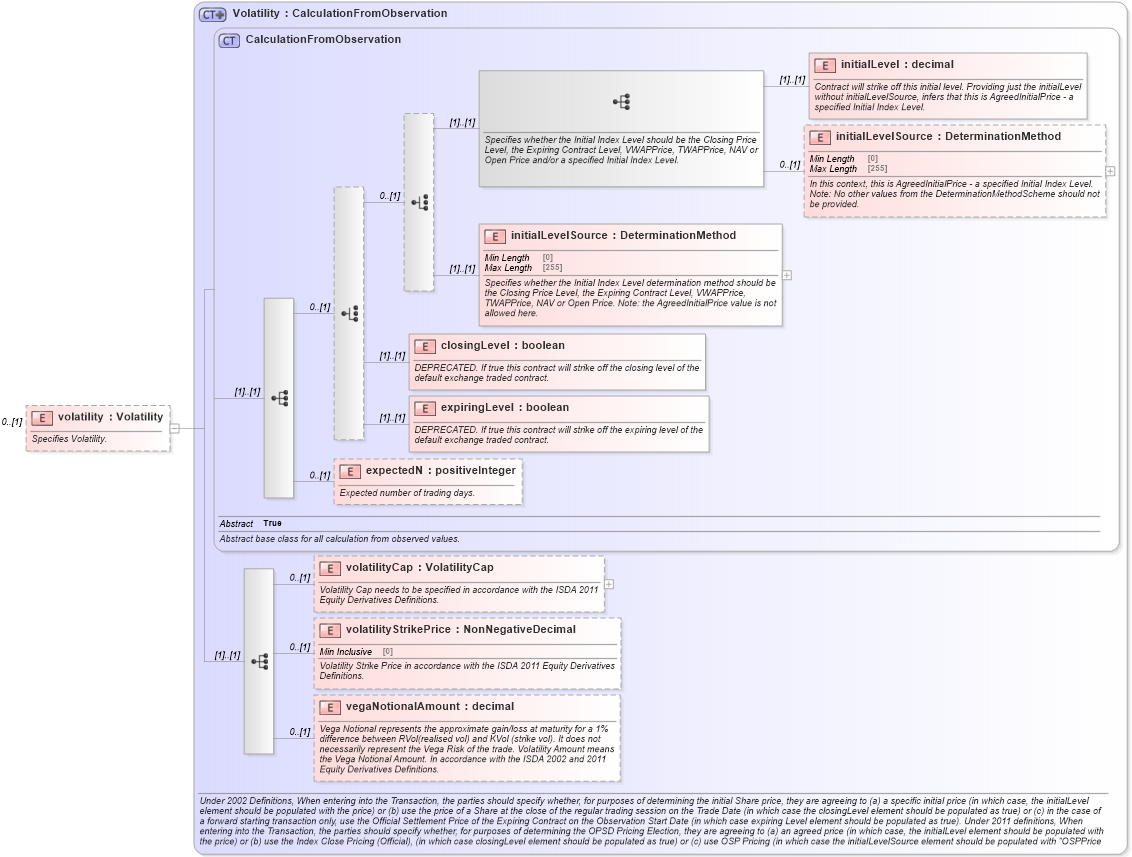

Collapse XSD Schema Diagram:
Drilldown into vegaNotionalAmount in schema fpml-volatility-swaps-5-10_xsd2 Drilldown into volatilityStrikePrice in schema fpml-volatility-swaps-5-10_xsd2 Drilldown into volatilityCap in schema fpml-volatility-swaps-5-10_xsd2 Drilldown into expectedN in schema fpml-eq-shared-5-10_xsd2 Drilldown into expiringLevel in schema fpml-eq-shared-5-10_xsd2 Drilldown into closingLevel in schema fpml-eq-shared-5-10_xsd2 Drilldown into initialLevelSource in schema fpml-eq-shared-5-10_xsd2 Drilldown into initialLevelSource in schema fpml-eq-shared-5-10_xsd2 Drilldown into initialLevel in schema fpml-eq-shared-5-10_xsd2 Drilldown into CalculationFromObservation in schema fpml-eq-shared-5-10_xsd2 Drilldown into Volatility in schema fpml-volatility-swaps-5-10_xsd2XSD Diagram of volatility in schema fpml-volatility-swaps-5-10_xsd2 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="volatility" type="Volatility" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Specifies Volatility.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
initialLevel nsE:initialLevel (1) (1)
initialLevelSource nsE:initialLevelSource 0 (1)
initialLevelSource nsE:initialLevelSource (1) (1)
closingLevel nsE:closingLevel (1) (1)
expiringLevel nsE:expiringLevel (1) (1)
expectedN nsE:expectedN 0 (1)
volatilityCap nsE:volatilityCap 0 (1)
volatilityStrikePrice nsE:volatilityStrikePrice 0 (1)
vegaNotionalAmount nsE:vegaNotionalAmount 0 (1)
Collapse Derivation Tree:
