Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: VolatilitySwapTransactionSupplement
Namespace: http://www.fpml.org/FpML-5/recordkeeping
Type: nsD:Product
Containing Schema: fpml-volatility-swaps-5-10.xsd
Abstract

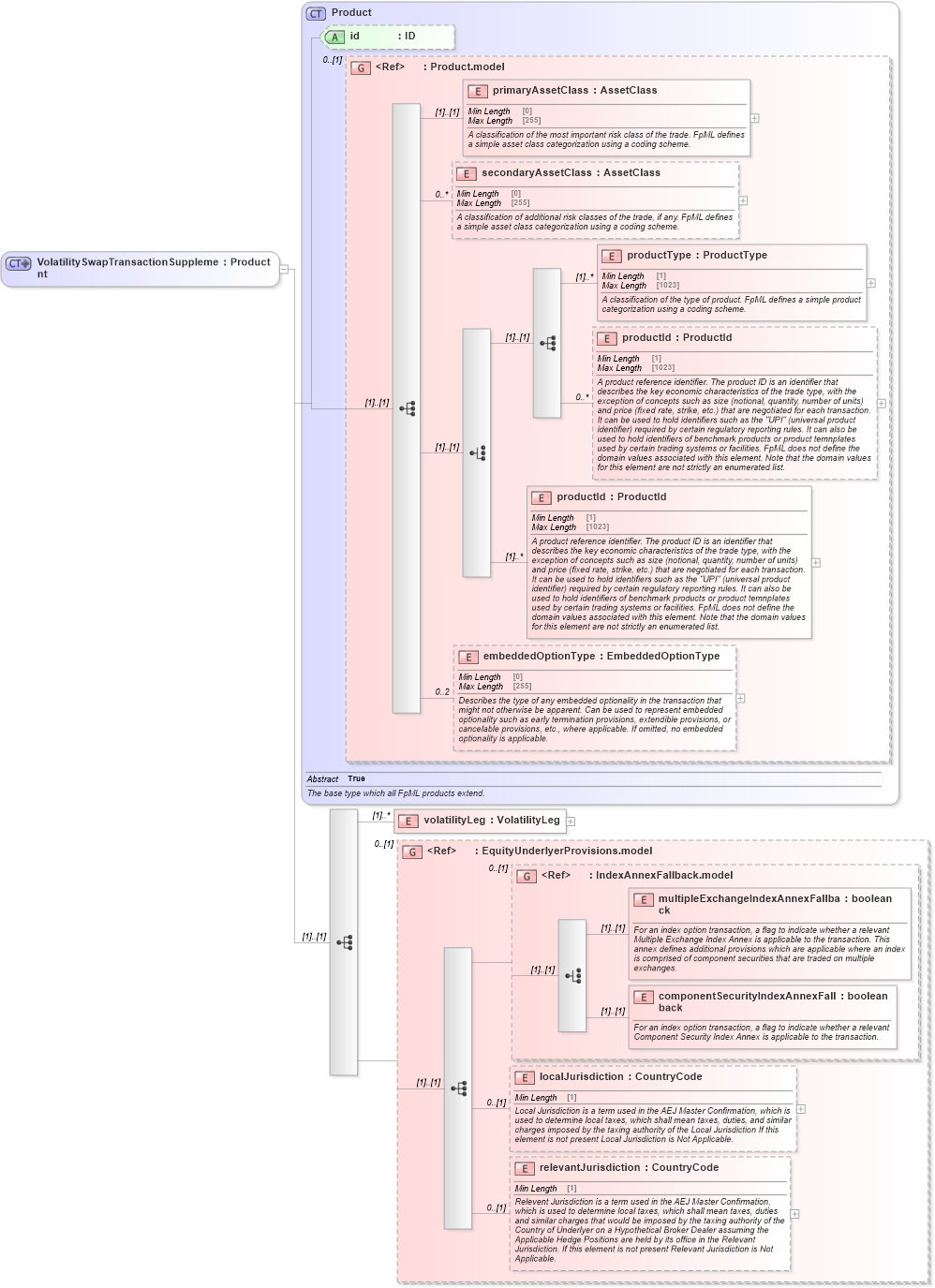

Collapse XSD Schema Diagram:
Drilldown into relevantJurisdiction in schema fpml-eq-shared-5-10_xsd1 Drilldown into localJurisdiction in schema fpml-eq-shared-5-10_xsd1 Drilldown into componentSecurityIndexAnnexFallback in schema fpml-eq-shared-5-10_xsd1 Drilldown into multipleExchangeIndexAnnexFallback in schema fpml-eq-shared-5-10_xsd1 Drilldown into IndexAnnexFallback.model in schema fpml-eq-shared-5-10_xsd1 Drilldown into EquityUnderlyerProvisions.model in schema fpml-eq-shared-5-10_xsd1 Drilldown into volatilityLeg in schema fpml-volatility-swaps-5-10_xsd1 Drilldown into embeddedOptionType in schema fpml-shared-5-10_xsd3 Drilldown into productId in schema fpml-shared-5-10_xsd3 Drilldown into productId in schema fpml-shared-5-10_xsd3 Drilldown into productType in schema fpml-shared-5-10_xsd3 Drilldown into secondaryAssetClass in schema fpml-shared-5-10_xsd3 Drilldown into primaryAssetClass in schema fpml-shared-5-10_xsd3 Drilldown into Product.model in schema fpml-shared-5-10_xsd3 Drilldown into id in schema fpml-shared-5-10_xsd3 Drilldown into Product in schema fpml-shared-5-10_xsd3XSD Diagram of VolatilitySwapTransactionSupplement in schema fpml-volatility-swaps-5-10_xsd1 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="VolatilitySwapTransactionSupplement">
    <xsd:complexContent>
        <xsd:extension base="Product">
            <xsd:sequence>
                <xsd:element name="volatilityLeg" type="VolatilityLeg" maxOccurs="unbounded" />
                <xsd:group ref="EquityUnderlyerProvisions.model" minOccurs="0">
                </xsd:group>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
primaryAssetClass nsD:primaryAssetClass (1) (1)
secondaryAssetClass nsD:secondaryAssetClass 0 unbounded
productType nsD:productType (1) unbounded
productId nsD:productId 0 unbounded
productId nsD:productId (1) unbounded
embeddedOptionType nsD:embeddedOptionType 0 2
volatilityLeg nsD:volatilityLeg (1) unbounded
multipleExchangeIndexAnnexFallback nsD:multipleExchangeIndexAnnexFallback (1) (1)
componentSecurityIndexAnnexFallback nsD:componentSecurityIndexAnnexFallback (1) (1)
localJurisdiction nsD:localJurisdiction 0 (1)
relevantJurisdiction nsD:relevantJurisdiction 0 (1)
<xs:group> nsD:EquityUnderlyerProvisions.model 0 (1)
<xs:group> nsD:IndexAnnexFallback.model 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsD:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsD:volatilitySwapTransactionSupplement
