Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: weatherIndexData
Namespace: http://www.fpml.org/FpML-5/confirmation
Type: nsA:WeatherIndexData
Containing Schema: fpml-com-5-10.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
Specifies where the data (e.g. CPD) have been collected, an actual physical reference point (weather station) and various fall back arrangements.

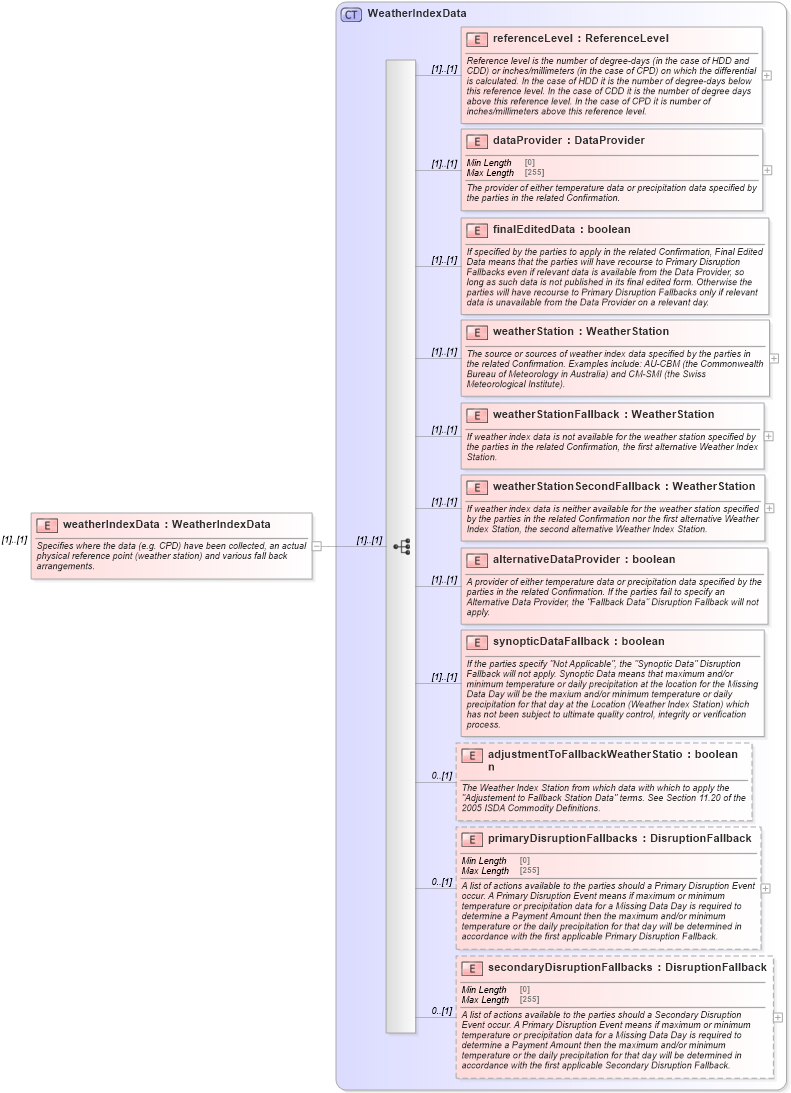

Collapse XSD Schema Diagram:
Drilldown into secondaryDisruptionFallbacks in schema fpml-com-5-10_xsd Drilldown into primaryDisruptionFallbacks in schema fpml-com-5-10_xsd Drilldown into adjustmentToFallbackWeatherStation in schema fpml-com-5-10_xsd Drilldown into synopticDataFallback in schema fpml-com-5-10_xsd Drilldown into alternativeDataProvider in schema fpml-com-5-10_xsd Drilldown into weatherStationSecondFallback in schema fpml-com-5-10_xsd Drilldown into weatherStationFallback in schema fpml-com-5-10_xsd Drilldown into weatherStation in schema fpml-com-5-10_xsd Drilldown into finalEditedData in schema fpml-com-5-10_xsd Drilldown into dataProvider in schema fpml-com-5-10_xsd Drilldown into referenceLevel in schema fpml-com-5-10_xsd Drilldown into WeatherIndexData in schema fpml-com-5-10_xsdXSD Diagram of weatherIndexData in schema fpml-com-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="weatherIndexData" type="WeatherIndexData">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Specifies where the data (e.g. CPD) have been collected, an actual physical reference point (weather station) and various fall back arrangements.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
referenceLevel nsA:referenceLevel (1) (1)
dataProvider nsA:dataProvider (1) (1)
finalEditedData nsA:finalEditedData (1) (1)
weatherStation nsA:weatherStation (1) (1)
weatherStationFallback nsA:weatherStationFallback (1) (1)
weatherStationSecondFallback nsA:weatherStationSecondFallback (1) (1)
alternativeDataProvider nsA:alternativeDataProvider (1) (1)
synopticDataFallback nsA:synopticDataFallback (1) (1)
adjustmentToFallbackWeatherStation nsA:adjustmentToFallbackWeatherStation 0 (1)
primaryDisruptionFallbacks nsA:primaryDisruptionFallbacks 0 (1)
secondaryDisruptionFallbacks nsA:secondaryDisruptionFallbacks 0 (1)
Collapse Derivation Tree:
