Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: weatherIndexData
Namespace: http://www.fpml.org/FpML-5/recordkeeping
Type: nsD:WeatherIndexData
Containing Schema: fpml-com-5-10.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
Specifies where the data (e.g. CPD) have been collected, an actual physical reference point (weather station) and various fall back arrangements.

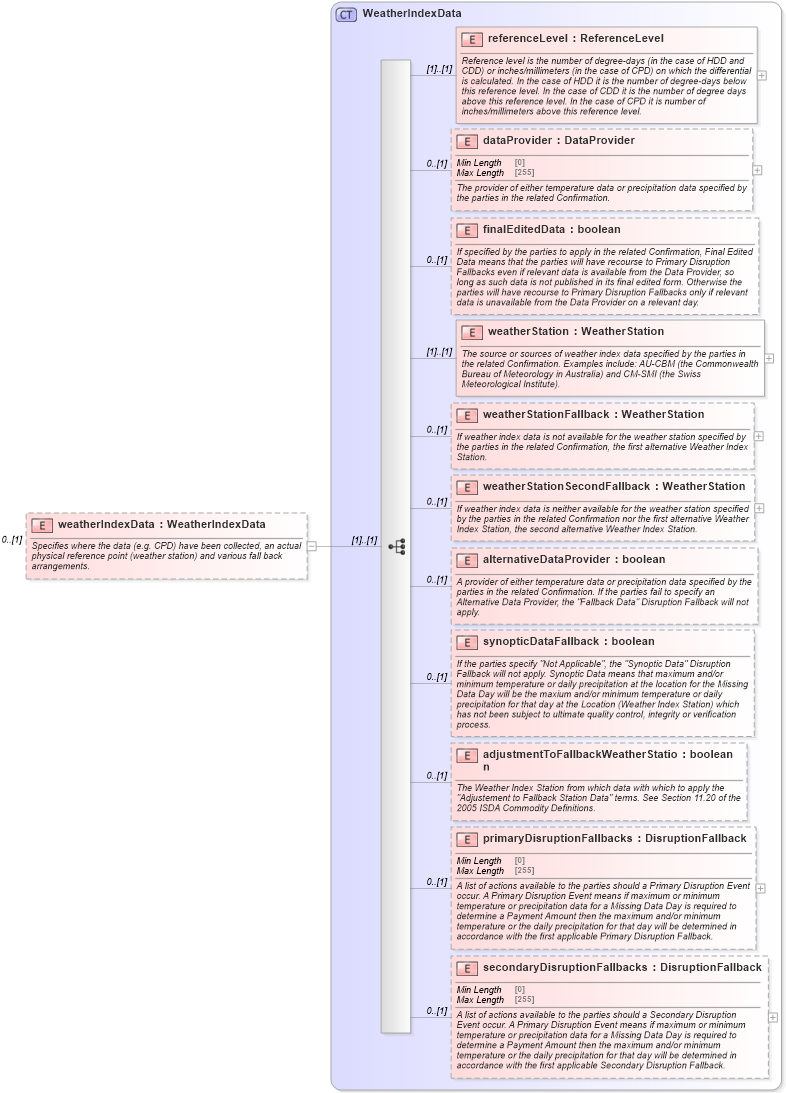

Collapse XSD Schema Diagram:
Drilldown into secondaryDisruptionFallbacks in schema fpml-com-5-10_xsd1 Drilldown into primaryDisruptionFallbacks in schema fpml-com-5-10_xsd1 Drilldown into adjustmentToFallbackWeatherStation in schema fpml-com-5-10_xsd1 Drilldown into synopticDataFallback in schema fpml-com-5-10_xsd1 Drilldown into alternativeDataProvider in schema fpml-com-5-10_xsd1 Drilldown into weatherStationSecondFallback in schema fpml-com-5-10_xsd1 Drilldown into weatherStationFallback in schema fpml-com-5-10_xsd1 Drilldown into weatherStation in schema fpml-com-5-10_xsd1 Drilldown into finalEditedData in schema fpml-com-5-10_xsd1 Drilldown into dataProvider in schema fpml-com-5-10_xsd1 Drilldown into referenceLevel in schema fpml-com-5-10_xsd1 Drilldown into WeatherIndexData in schema fpml-com-5-10_xsd1XSD Diagram of weatherIndexData in schema fpml-com-5-10_xsd1 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="weatherIndexData" type="WeatherIndexData" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Specifies where the data (e.g. CPD) have been collected, an actual physical reference point (weather station) and various fall back arrangements.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
referenceLevel nsD:referenceLevel (1) (1)
dataProvider nsD:dataProvider 0 (1)
finalEditedData nsD:finalEditedData 0 (1)
weatherStation nsD:weatherStation (1) (1)
weatherStationFallback nsD:weatherStationFallback 0 (1)
weatherStationSecondFallback nsD:weatherStationSecondFallback 0 (1)
alternativeDataProvider nsD:alternativeDataProvider 0 (1)
synopticDataFallback nsD:synopticDataFallback 0 (1)
adjustmentToFallbackWeatherStation nsD:adjustmentToFallbackWeatherStation 0 (1)
primaryDisruptionFallbacks nsD:primaryDisruptionFallbacks 0 (1)
secondaryDisruptionFallbacks nsD:secondaryDisruptionFallbacks 0 (1)
Collapse Derivation Tree:
