Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: commoditySwap
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsA:CommoditySwap
Containing Schema: fpml-com-5-2.xsd
Abstract
Documentation:
Defines a commodity swap product.

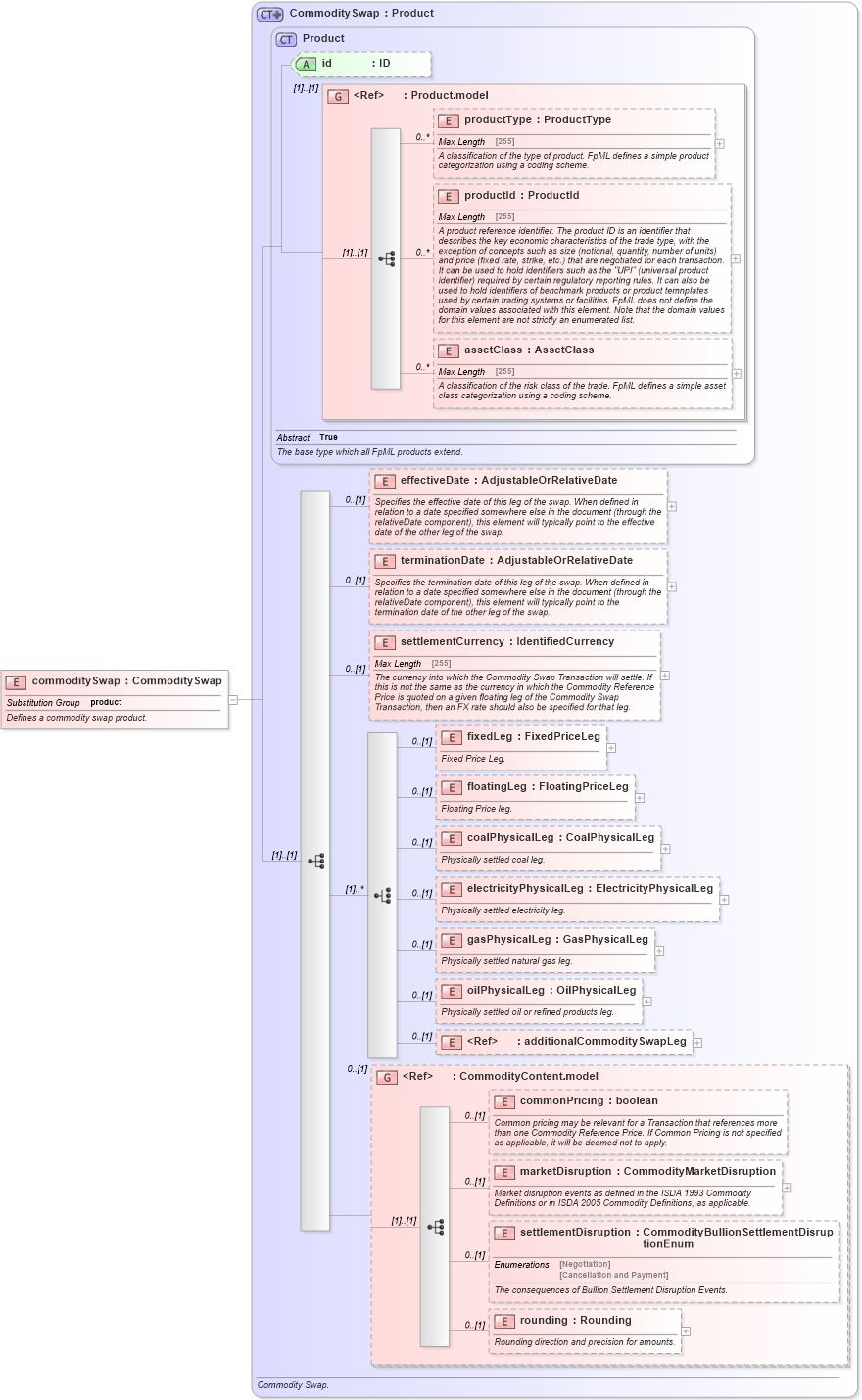

Collapse XSD Schema Diagram:
Drilldown into rounding in schema fpml-com-5-2_xsd Drilldown into settlementDisruption in schema fpml-com-5-2_xsd Drilldown into marketDisruption in schema fpml-com-5-2_xsd Drilldown into commonPricing in schema fpml-com-5-2_xsd Drilldown into CommodityContent.model in schema fpml-com-5-2_xsd Drilldown into additionalCommoditySwapLeg in schema fpml-com-5-2_xsd Drilldown into oilPhysicalLeg in schema fpml-com-5-2_xsd Drilldown into gasPhysicalLeg in schema fpml-com-5-2_xsd Drilldown into electricityPhysicalLeg in schema fpml-com-5-2_xsd Drilldown into coalPhysicalLeg in schema fpml-com-5-2_xsd Drilldown into floatingLeg in schema fpml-com-5-2_xsd Drilldown into fixedLeg in schema fpml-com-5-2_xsd Drilldown into settlementCurrency in schema fpml-com-5-2_xsd Drilldown into terminationDate in schema fpml-com-5-2_xsd Drilldown into effectiveDate in schema fpml-com-5-2_xsd Drilldown into assetClass in schema fpml-shared-5-2_xsd Drilldown into productId in schema fpml-shared-5-2_xsd Drilldown into productType in schema fpml-shared-5-2_xsd Drilldown into Product.model in schema fpml-shared-5-2_xsd Drilldown into id in schema fpml-shared-5-2_xsd Drilldown into Product in schema fpml-shared-5-2_xsd Drilldown into CommoditySwap in schema fpml-com-5-2_xsdXSD Diagram of commoditySwap in schema fpml-com-5-2_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="commoditySwap" type="CommoditySwap" substitutionGroup="product">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Defines a commodity swap product.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
productType nsA:productType 0 unbounded
productId nsA:productId 0 unbounded
assetClass nsA:assetClass 0 unbounded
effectiveDate nsA:effectiveDate 0 (1)
terminationDate nsA:terminationDate 0 (1)
settlementCurrency nsA:settlementCurrency 0 (1)
fixedLeg nsA:fixedLeg 0 (1)
floatingLeg nsA:floatingLeg 0 (1)
coalPhysicalLeg nsA:coalPhysicalLeg 0 (1)
electricityPhysicalLeg nsA:electricityPhysicalLeg 0 (1)
gasPhysicalLeg nsA:gasPhysicalLeg 0 (1)
oilPhysicalLeg nsA:oilPhysicalLeg 0 (1)
additionalCommoditySwapLeg nsA:additionalCommoditySwapLeg 0 (1)
commonPricing nsA:commonPricing 0 (1)
marketDisruption nsA:marketDisruption 0 (1)
settlementDisruption nsA:settlementDisruption 0 (1)
rounding nsA:rounding 0 (1)
<xs:group> nsA:CommodityContent.model 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:product
