Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: FxSwapLeg
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsA:Leg
Containing Schema: fpml-fx-5-2.xsd
Abstract

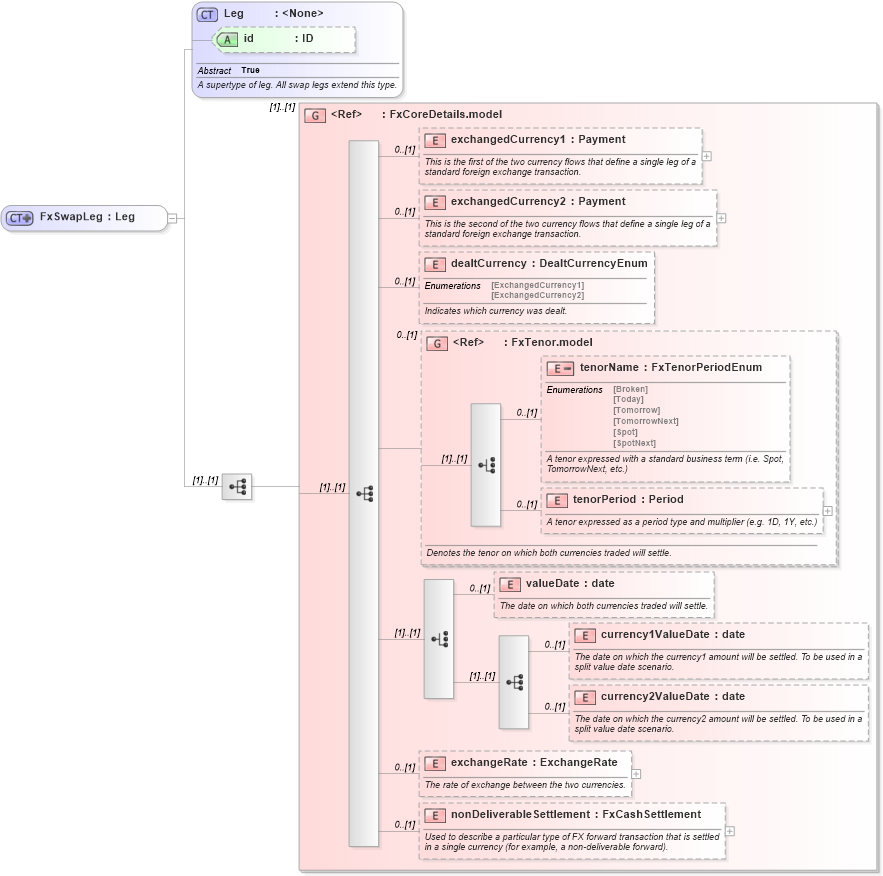

Collapse XSD Schema Diagram:
Drilldown into nonDeliverableSettlement in schema fpml-fx-5-2_xsd Drilldown into exchangeRate in schema fpml-fx-5-2_xsd Drilldown into currency2ValueDate in schema fpml-fx-5-2_xsd Drilldown into currency1ValueDate in schema fpml-fx-5-2_xsd Drilldown into valueDate in schema fpml-fx-5-2_xsd Drilldown into tenorPeriod in schema fpml-fx-5-2_xsd Drilldown into tenorName in schema fpml-fx-5-2_xsd Drilldown into FxTenor.model in schema fpml-fx-5-2_xsd Drilldown into dealtCurrency in schema fpml-fx-5-2_xsd Drilldown into exchangedCurrency2 in schema fpml-fx-5-2_xsd Drilldown into exchangedCurrency1 in schema fpml-fx-5-2_xsd Drilldown into FxCoreDetails.model in schema fpml-fx-5-2_xsd Drilldown into id in schema fpml-shared-5-2_xsd Drilldown into Leg in schema fpml-shared-5-2_xsdXSD Diagram of FxSwapLeg in schema fpml-fx-5-2_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="FxSwapLeg">
    <xsd:complexContent>
        <xsd:extension base="Leg">
            <xsd:annotation>
                <xsd:documentation>A type defining the details for one of the transactions in an FX swap.</xsd:documentation>
            </xsd:annotation>
            <xsd:sequence>
                <xsd:group ref="FxCoreDetails.model" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
exchangedCurrency1 nsA:exchangedCurrency1 0 (1)
exchangedCurrency2 nsA:exchangedCurrency2 0 (1)
dealtCurrency nsA:dealtCurrency 0 (1)
tenorName nsA:tenorName 0 (1)
tenorPeriod nsA:tenorPeriod 0 (1)
valueDate nsA:valueDate 0 (1)
currency1ValueDate nsA:currency1ValueDate 0 (1)
currency2ValueDate nsA:currency2ValueDate 0 (1)
exchangeRate nsA:exchangeRate 0 (1)
nonDeliverableSettlement nsA:nonDeliverableSettlement 0 (1)
<xs:group> nsA:FxCoreDetails.model (1) (1)
<xs:group> nsA:FxTenor.model 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:farLeg, nsA:nearLeg
