Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: NonCorrectableRequestMessage
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsA:RequestMessage
Containing Schema: fpml-msg-5-2.xsd
Abstract
Documentation:
A type defining the content model for a request message that cannot be subsequently corrected or retracted.

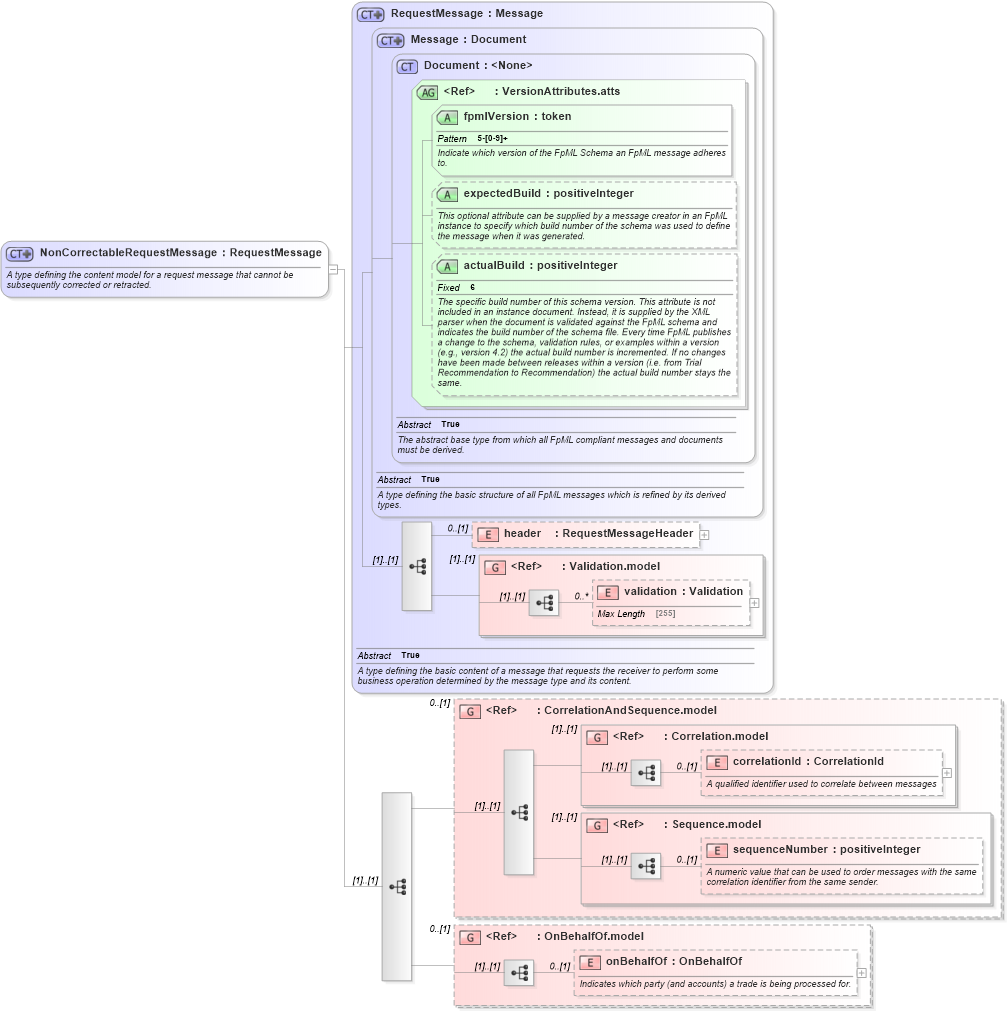

Collapse XSD Schema Diagram:
Drilldown into onBehalfOf in schema fpml-shared-5-2_xsd Drilldown into OnBehalfOf.model in schema fpml-shared-5-2_xsd Drilldown into sequenceNumber in schema fpml-msg-5-2_xsd Drilldown into Sequence.model in schema fpml-msg-5-2_xsd Drilldown into correlationId in schema fpml-msg-5-2_xsd Drilldown into Correlation.model in schema fpml-msg-5-2_xsd Drilldown into CorrelationAndSequence.model in schema fpml-msg-5-2_xsd Drilldown into validation in schema fpml-doc-5-2_xsd Drilldown into Validation.model in schema fpml-doc-5-2_xsd Drilldown into header in schema fpml-msg-5-2_xsd Drilldown into actualBuild in schema fpml-doc-5-2_xsd Drilldown into expectedBuild in schema fpml-doc-5-2_xsd Drilldown into fpmlVersion in schema fpml-doc-5-2_xsd Drilldown into VersionAttributes.atts in schema fpml-doc-5-2_xsd Drilldown into Document in schema fpml-doc-5-2_xsd Drilldown into Message in schema fpml-msg-5-2_xsd Drilldown into RequestMessage in schema fpml-msg-5-2_xsdXSD Diagram of NonCorrectableRequestMessage in schema fpml-msg-5-2_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="NonCorrectableRequestMessage">
    <xsd:annotation>
        <xsd:documentation>A type defining the content model for a request message that cannot be subsequently corrected or retracted.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="RequestMessage">
            <xsd:sequence>
                <xsd:group ref="CorrelationAndSequence.model" minOccurs="0" />
                <xsd:group ref="OnBehalfOf.model" minOccurs="0" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
header nsA:header 0 (1)
validation nsA:validation 0 unbounded
correlationId nsA:correlationId 0 (1)
sequenceNumber nsA:sequenceNumber 0 (1)
onBehalfOf nsA:onBehalfOf 0 (1)
<xs:group> nsA:Validation.model (1) (1)
<xs:group> nsA:CorrelationAndSequence.model 0 (1)
<xs:group> nsA:Correlation.model (1) (1)
<xs:group> nsA:Sequence.model (1) (1)
<xs:group> nsA:OnBehalfOf.model 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
fpmlVersion nsA:fpmlVersion Required
expectedBuild nsA:expectedBuild (Optional)
actualBuild nsA:actualBuild (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:DisputeRetracted, nsA:InterestStatusRetracted, nsA:MarginCallStatusRetracted, nsA:NettedTradeCashflowsRetractednsA:RequestEventStatus, nsA:RequestInterestRetracted, nsA:RequestMarginRetracted, nsA:RequestSubstitutionRetracted, nsA:SubstitutionStatusRetracted,
