Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: notionalQuantitySchedule
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsA:CommodityNotionalQuantitySchedule
Containing Schema: fpml-com-5-2.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
Allows the documentation of a shaped notional trade where the notional changes over the life of the transaction.

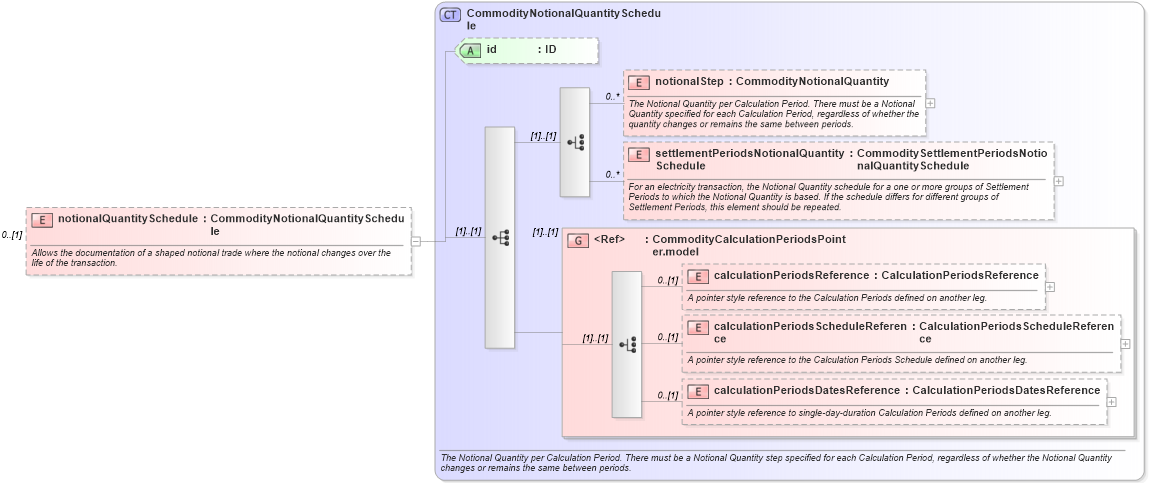

Collapse XSD Schema Diagram:
Drilldown into calculationPeriodsDatesReference in schema fpml-com-5-2_xsd Drilldown into calculationPeriodsScheduleReference in schema fpml-com-5-2_xsd Drilldown into calculationPeriodsReference in schema fpml-com-5-2_xsd Drilldown into CommodityCalculationPeriodsPointer.model in schema fpml-com-5-2_xsd Drilldown into settlementPeriodsNotionalQuantitySchedule in schema fpml-com-5-2_xsd Drilldown into notionalStep in schema fpml-com-5-2_xsd Drilldown into id in schema fpml-com-5-2_xsd Drilldown into CommodityNotionalQuantitySchedule in schema fpml-com-5-2_xsdXSD Diagram of notionalQuantitySchedule in schema fpml-com-5-2_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="notionalQuantitySchedule" type="CommodityNotionalQuantitySchedule" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Allows the documentation of a shaped notional trade where the notional changes over the life of the transaction.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
notionalStep nsA:notionalStep 0 unbounded
settlementPeriodsNotionalQuantitySchedule nsA:settlementPeriodsNotionalQuantitySchedule 0 unbounded
calculationPeriodsReference nsA:calculationPeriodsReference 0 (1)
calculationPeriodsScheduleReference nsA:calculationPeriodsScheduleReference 0 (1)
calculationPeriodsDatesReference nsA:calculationPeriodsDatesReference 0 (1)
<xs:group> nsA:CommodityCalculationPeriodsPointer.model (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
Collapse Derivation Tree:
