Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: OptionExpiry
Namespace: http://www.fpml.org/FpML-5/reporting
Containing Schema: fpml-business-events-5-2.xsd
Abstract
Documentation:
A structure describing an option expiring.

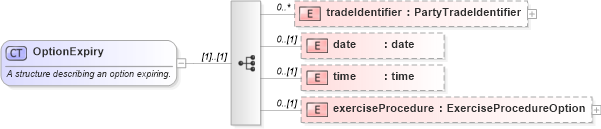

Collapse XSD Schema Diagram:
Drilldown into exerciseProcedure in schema fpml-business-events-5-2_xsd Drilldown into time in schema fpml-business-events-5-2_xsd Drilldown into date in schema fpml-business-events-5-2_xsd Drilldown into tradeIdentifier in schema fpml-business-events-5-2_xsdXSD Diagram of OptionExpiry in schema fpml-business-events-5-2_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="OptionExpiry">
    <xsd:annotation>
        <xsd:documentation>A structure describing an option expiring.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="tradeIdentifier" type="PartyTradeIdentifier" maxOccurs="unbounded" minOccurs="0" />
        <xsd:element name="date" type="xsd:date" minOccurs="0" />
        <xsd:element name="time" type="xsd:time" minOccurs="0" />
        <xsd:element name="exerciseProcedure" type="ExerciseProcedureOption" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
tradeIdentifier nsA:tradeIdentifier 0 unbounded
date nsA:date 0 (1)
time nsA:time 0 (1)
exerciseProcedure nsA:exerciseProcedure 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:optionExpiry
