Documentation for Financial products Markup Language (FpML®)
Definition Type: Group
Name: SettlementAmountOrCurrency.model
Namespace: http://www.fpml.org/FpML-5/reporting
Containing Schema: fpml-shared-5-2.xsd

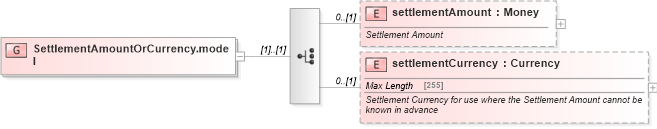

Collapse XSD Schema Diagram:
Drilldown into settlementCurrency in schema fpml-shared-5-2_xsd Drilldown into settlementAmount in schema fpml-shared-5-2_xsdXSD Diagram of SettlementAmountOrCurrency.model in schema fpml-shared-5-2_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:group name="SettlementAmountOrCurrency.model">
    <xsd:choice>
        <xsd:element name="settlementAmount" type="Money" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">Settlement Amount</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="settlementCurrency" type="Currency" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">Settlement Currency for use where the Settlement Amount cannot be known in advance</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:choice>
</xsd:group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
settlementAmount nsA:settlementAmount 0 (1)
settlementCurrency nsA:settlementCurrency 0 (1)
