Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: VersionedTradeId
Namespace: http://www.fpml.org/FpML-5/reporting
Containing Schema: fpml-doc-5-2.xsd
Abstract
Documentation:
Trade Id with Version Support

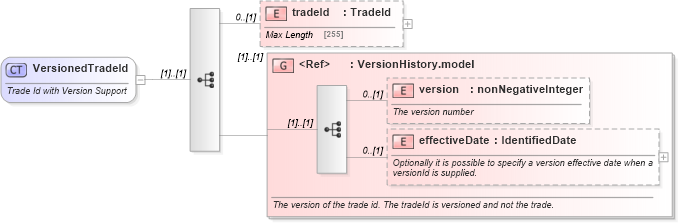

Collapse XSD Schema Diagram:
Drilldown into effectiveDate in schema fpml-shared-5-2_xsd Drilldown into version in schema fpml-shared-5-2_xsd Drilldown into VersionHistory.model in schema fpml-shared-5-2_xsd Drilldown into tradeId in schema fpml-doc-5-2_xsdXSD Diagram of VersionedTradeId in schema fpml-doc-5-2_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="VersionedTradeId">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Trade Id with Version Support</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="tradeId" type="TradeId" minOccurs="0" />
        <xsd:group ref="VersionHistory.model">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The version of the trade id. The tradeId is versioned and not the trade.</xsd:documentation>
            </xsd:annotation>
        </xsd:group>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
tradeId nsA:tradeId 0 (1)
version nsA:version 0 (1)
effectiveDate nsA:effectiveDate 0 (1)
<xs:group> nsA:VersionHistory.model (1) (1)
