Documentation for Financial products Markup Language (FpML®)
Definition Type: Group
Name: CommoditySwapDetails.model
Namespace: http://www.fpml.org/FpML-5/reporting
Containing Schema: fpml-com-5-3.xsd

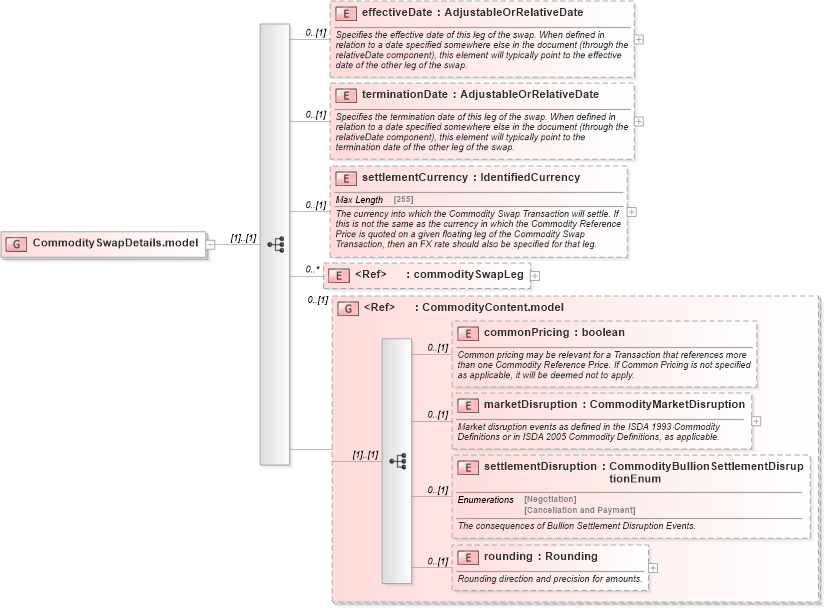

Collapse XSD Schema Diagram:
Drilldown into rounding in schema fpml-com-5-3_xsd Drilldown into settlementDisruption in schema fpml-com-5-3_xsd Drilldown into marketDisruption in schema fpml-com-5-3_xsd Drilldown into commonPricing in schema fpml-com-5-3_xsd Drilldown into CommodityContent.model in schema fpml-com-5-3_xsd Drilldown into commoditySwapLeg in schema fpml-com-5-3_xsd Drilldown into settlementCurrency in schema fpml-com-5-3_xsd Drilldown into terminationDate in schema fpml-com-5-3_xsd Drilldown into effectiveDate in schema fpml-com-5-3_xsdXSD Diagram of CommoditySwapDetails.model in schema fpml-com-5-3_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:group name="CommoditySwapDetails.model">
    <xsd:sequence>
        <xsd:element name="effectiveDate" type="AdjustableOrRelativeDate" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">Specifies the effective date of this leg of the swap. When defined in relation to a date specified somewhere else in the document (through the relativeDate component), this element will typically point to the effective date of the other leg of the swap.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="terminationDate" type="AdjustableOrRelativeDate" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">Specifies the termination date of this leg of the swap. When defined in relation to a date specified somewhere else in the document (through the relativeDate component), this element will typically point to the termination date of the other leg of the swap.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="settlementCurrency" type="IdentifiedCurrency" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The currency into which the Commodity Swap Transaction will settle. If this is not the same as the currency in which the Commodity Reference Price is quoted on a given floating leg of the Commodity Swap Transaction, then an FX rate should also be specified for that leg.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="commoditySwapLeg" maxOccurs="unbounded" minOccurs="0" />
        <xsd:group ref="CommodityContent.model" minOccurs="0">
        </xsd:group>
    </xsd:sequence>
</xsd:group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
effectiveDate nsA:effectiveDate 0 (1)
terminationDate nsA:terminationDate 0 (1)
settlementCurrency nsA:settlementCurrency 0 (1)
commoditySwapLeg nsA:commoditySwapLeg 0 unbounded
commonPricing nsA:commonPricing 0 (1)
marketDisruption nsA:marketDisruption 0 (1)
settlementDisruption nsA:settlementDisruption 0 (1)
rounding nsA:rounding 0 (1)
<xs:group> nsA:CommodityContent.model 0 (1)
