Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: barrier
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsA:FxBarrierFeature
Containing Schema: fpml-fx-5-4.xsd
MinOccurs (1)
MaxOccurs unbounded
Abstract
Collapse XSD Schema Diagram:

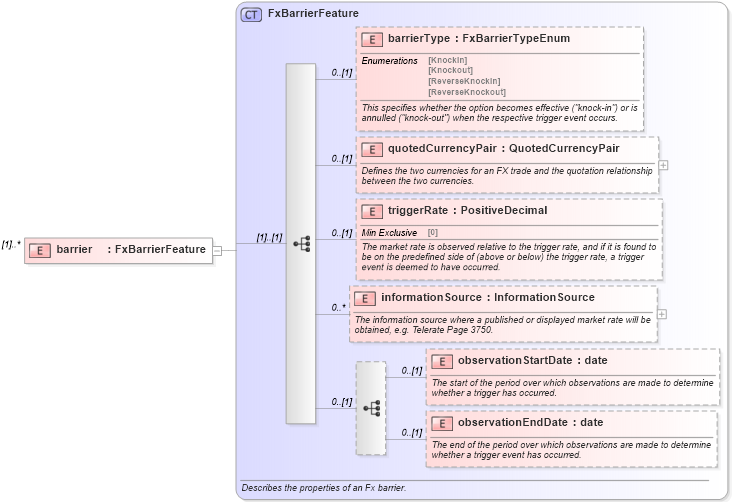

Drilldown into observationEndDate in schema fpml-fx-5-4_xsd Drilldown into observationStartDate in schema fpml-fx-5-4_xsd Drilldown into informationSource in schema fpml-fx-5-4_xsd Drilldown into triggerRate in schema fpml-fx-5-4_xsd Drilldown into quotedCurrencyPair in schema fpml-fx-5-4_xsd Drilldown into barrierType in schema fpml-fx-5-4_xsd Drilldown into FxBarrierFeature in schema fpml-fx-5-4_xsdXSD Diagram of barrier in schema fpml-fx-5-4_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="barrier" type="FxBarrierFeature" maxOccurs="unbounded">
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
barrierType nsA:barrierType 0 (1)
quotedCurrencyPair nsA:quotedCurrencyPair 0 (1)
triggerRate nsA:triggerRate 0 (1)
informationSource nsA:informationSource 0 unbounded
observationStartDate nsA:observationStartDate 0 (1)
observationEndDate nsA:observationEndDate 0 (1)
Collapse Derivation Tree:
