Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: constituent
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsA:PositionConstituent
Containing Schema: fpml-reconciliation-5-4.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
The components that create this position.

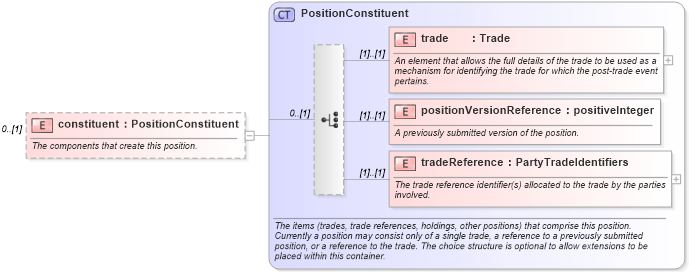

Collapse XSD Schema Diagram:
Drilldown into tradeReference in schema fpml-valuation-5-4_xsd Drilldown into positionVersionReference in schema fpml-valuation-5-4_xsd Drilldown into trade in schema fpml-valuation-5-4_xsd Drilldown into PositionConstituent in schema fpml-valuation-5-4_xsdXSD Diagram of constituent in schema fpml-reconciliation-5-4_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="constituent" type="PositionConstituent" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The components that create this position.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
trade nsA:trade (1) (1)
positionVersionReference nsA:positionVersionReference (1) (1)
tradeReference nsA:tradeReference (1) (1)
Collapse Derivation Tree:
