Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: FxDigitalAmericanExercise
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsA:Exercise
Containing Schema: fpml-fx-5-4.xsd
Abstract
Documentation:
Descrines the characteristics for American exercise in FX digital options.

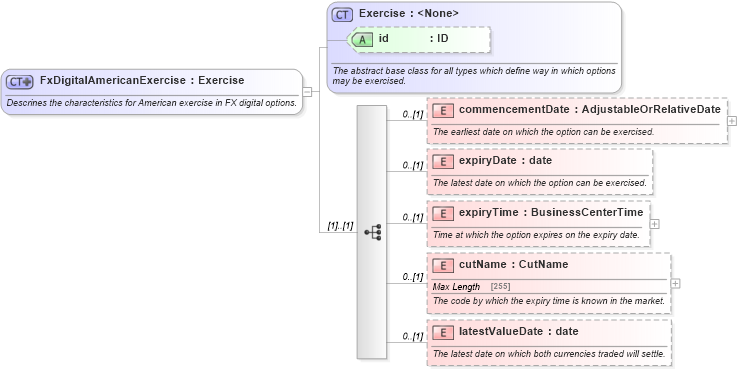

Collapse XSD Schema Diagram:
Drilldown into latestValueDate in schema fpml-fx-5-4_xsd Drilldown into cutName in schema fpml-fx-5-4_xsd Drilldown into expiryTime in schema fpml-fx-5-4_xsd Drilldown into expiryDate in schema fpml-fx-5-4_xsd Drilldown into commencementDate in schema fpml-fx-5-4_xsd Drilldown into id in schema fpml-shared-5-4_xsd Drilldown into Exercise in schema fpml-shared-5-4_xsdXSD Diagram of FxDigitalAmericanExercise in schema fpml-fx-5-4_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="FxDigitalAmericanExercise">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Descrines the characteristics for American exercise in FX digital options.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="Exercise">
            <xsd:sequence>
                <xsd:element name="commencementDate" type="AdjustableOrRelativeDate" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">The earliest date on which the option can be exercised.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="expiryDate" type="xsd:date" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">The latest date on which the option can be exercised.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="expiryTime" type="BusinessCenterTime" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">Time at which the option expires on the expiry date.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="cutName" type="CutName" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">The code by which the expiry time is known in the market.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="latestValueDate" type="xsd:date" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">The latest date on which both currencies traded will settle.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
commencementDate nsA:commencementDate 0 (1)
expiryDate nsA:expiryDate 0 (1)
expiryTime nsA:expiryTime 0 (1)
cutName nsA:cutName 0 (1)
latestValueDate nsA:latestValueDate 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:americanExercisensA:FxAmericanExercise,
