Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: interestLeg
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsA:InterestLeg
Containing Schema: fpml-eq-shared-5-4.xsd
Abstract
Documentation:
The fixed income amounts of the return type swap.

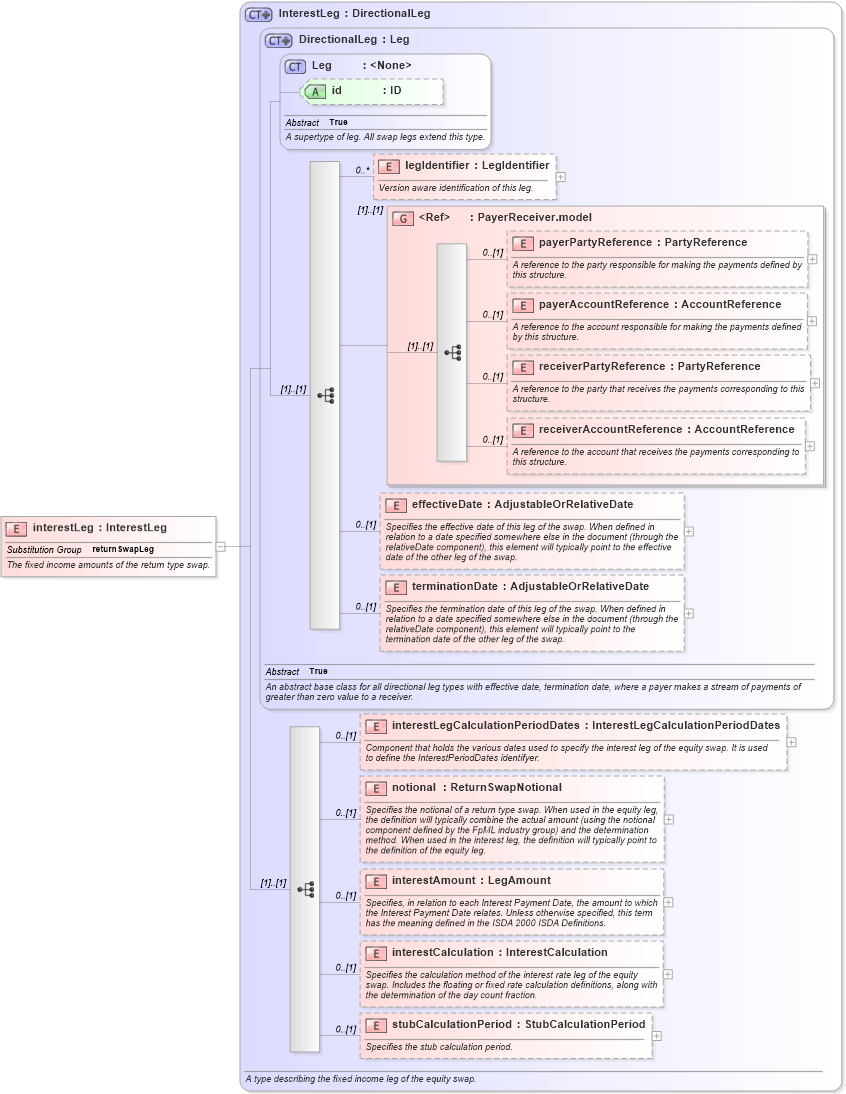

Collapse XSD Schema Diagram:
Drilldown into stubCalculationPeriod in schema fpml-eq-shared-5-4_xsd Drilldown into interestCalculation in schema fpml-eq-shared-5-4_xsd Drilldown into interestAmount in schema fpml-eq-shared-5-4_xsd Drilldown into notional in schema fpml-eq-shared-5-4_xsd Drilldown into interestLegCalculationPeriodDates in schema fpml-eq-shared-5-4_xsd Drilldown into terminationDate in schema fpml-eq-shared-5-4_xsd Drilldown into effectiveDate in schema fpml-eq-shared-5-4_xsd Drilldown into receiverAccountReference in schema fpml-shared-5-4_xsd Drilldown into receiverPartyReference in schema fpml-shared-5-4_xsd Drilldown into payerAccountReference in schema fpml-shared-5-4_xsd Drilldown into payerPartyReference in schema fpml-shared-5-4_xsd Drilldown into PayerReceiver.model in schema fpml-shared-5-4_xsd Drilldown into legIdentifier in schema fpml-eq-shared-5-4_xsd Drilldown into id in schema fpml-shared-5-4_xsd Drilldown into Leg in schema fpml-shared-5-4_xsd Drilldown into DirectionalLeg in schema fpml-eq-shared-5-4_xsd Drilldown into InterestLeg in schema fpml-eq-shared-5-4_xsdXSD Diagram of interestLeg in schema fpml-eq-shared-5-4_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="interestLeg" type="InterestLeg" substitutionGroup="returnSwapLeg">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The fixed income amounts of the return type swap.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
legIdentifier nsA:legIdentifier 0 unbounded
payerPartyReference nsA:payerPartyReference 0 (1)
payerAccountReference nsA:payerAccountReference 0 (1)
receiverPartyReference nsA:receiverPartyReference 0 (1)
receiverAccountReference nsA:receiverAccountReference 0 (1)
effectiveDate nsA:effectiveDate 0 (1)
terminationDate nsA:terminationDate 0 (1)
interestLegCalculationPeriodDates nsA:interestLegCalculationPeriodDates 0 (1)
notional nsA:notional 0 (1)
interestAmount nsA:interestAmount 0 (1)
interestCalculation nsA:interestCalculation 0 (1)
stubCalculationPeriod nsA:stubCalculationPeriod 0 (1)
<xs:group> nsA:PayerReceiver.model (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:returnSwapLeg
