Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: metal
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsA:Metal
Containing Schema: fpml-com-5-4.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
The specification of the Metal Product to be delivered.

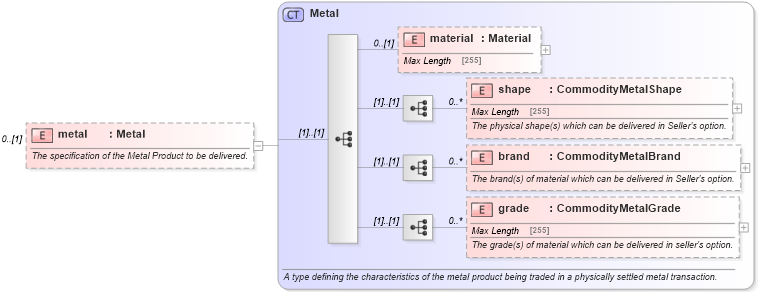

Collapse XSD Schema Diagram:
Drilldown into grade in schema fpml-com-5-4_xsd Drilldown into brand in schema fpml-com-5-4_xsd Drilldown into shape in schema fpml-com-5-4_xsd Drilldown into material in schema fpml-com-5-4_xsd Drilldown into Metal in schema fpml-com-5-4_xsdXSD Diagram of metal in schema fpml-com-5-4_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="metal" type="Metal" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The specification of the Metal Product to be delivered.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
material nsA:material 0 (1)
shape nsA:shape 0 unbounded
brand nsA:brand 0 unbounded
grade nsA:grade 0 unbounded
Collapse Derivation Tree:
