Documentation for Financial products Markup Language (FpML®)
Definition Type: Group
Name: PaymentDetails.model
Namespace: http://www.fpml.org/FpML-5/reporting
Containing Schema: fpml-shared-5-4.xsd
Documentation:
A group that covers key elements used in payment reporting messages.

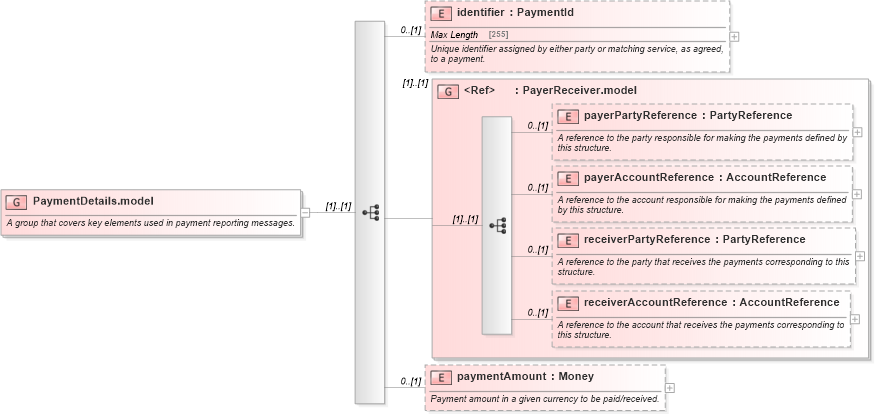

Collapse XSD Schema Diagram:
Drilldown into paymentAmount in schema fpml-shared-5-4_xsd Drilldown into receiverAccountReference in schema fpml-shared-5-4_xsd Drilldown into receiverPartyReference in schema fpml-shared-5-4_xsd Drilldown into payerAccountReference in schema fpml-shared-5-4_xsd Drilldown into payerPartyReference in schema fpml-shared-5-4_xsd Drilldown into PayerReceiver.model in schema fpml-shared-5-4_xsd Drilldown into identifier in schema fpml-shared-5-4_xsdXSD Diagram of PaymentDetails.model in schema fpml-shared-5-4_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:group name="PaymentDetails.model">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A group that covers key elements used in payment reporting messages.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="identifier" type="PaymentId" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">Unique identifier assigned by either party or matching service, as agreed, to a payment.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:group ref="PayerReceiver.model" />
        <xsd:element name="paymentAmount" type="Money" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">Payment amount in a given currency to be paid/received.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
identifier nsA:identifier 0 (1)
payerPartyReference nsA:payerPartyReference 0 (1)
payerAccountReference nsA:payerAccountReference 0 (1)
receiverPartyReference nsA:receiverPartyReference 0 (1)
receiverAccountReference nsA:receiverAccountReference 0 (1)
paymentAmount nsA:paymentAmount 0 (1)
<xs:group> nsA:PayerReceiver.model (1) (1)
