Documentation for Financial products Markup Language (FpML®)
Definition Type: Group
Name: PositionStatusInfo.model
Namespace: http://www.fpml.org/FpML-5/reporting
Containing Schema: fpml-valuation-5-4.xsd
Documentation:
Contains information about the status of the position

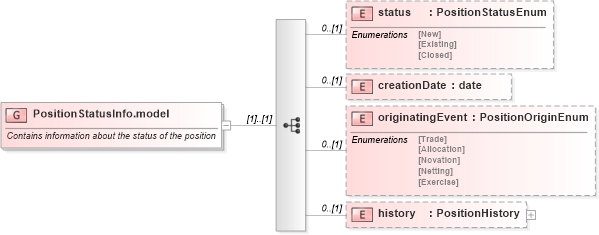

Collapse XSD Schema Diagram:
Drilldown into history in schema fpml-valuation-5-4_xsd Drilldown into originatingEvent in schema fpml-valuation-5-4_xsd Drilldown into creationDate in schema fpml-valuation-5-4_xsd Drilldown into status in schema fpml-valuation-5-4_xsdXSD Diagram of PositionStatusInfo.model in schema fpml-valuation-5-4_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:group name="PositionStatusInfo.model">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Contains information about the status of the position</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="status" type="PositionStatusEnum" minOccurs="0" />
        <xsd:element name="creationDate" type="xsd:date" minOccurs="0" />
        <xsd:element name="originatingEvent" type="PositionOriginEnum" minOccurs="0" />
        <xsd:element name="history" type="PositionHistory" minOccurs="0" />
    </xsd:sequence>
</xsd:group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
status nsA:status 0 (1)
creationDate nsA:creationDate 0 (1)
originatingEvent nsA:originatingEvent 0 (1)
history nsA:history 0 (1)
