Definition Type: Element
Name: quotationCharacteristics
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsA:QuotationCharacteristics
Containing Schema: fpml-reporting-5-4.xsd
MinOccurs 0
MaxOccurs (1)
Abstract

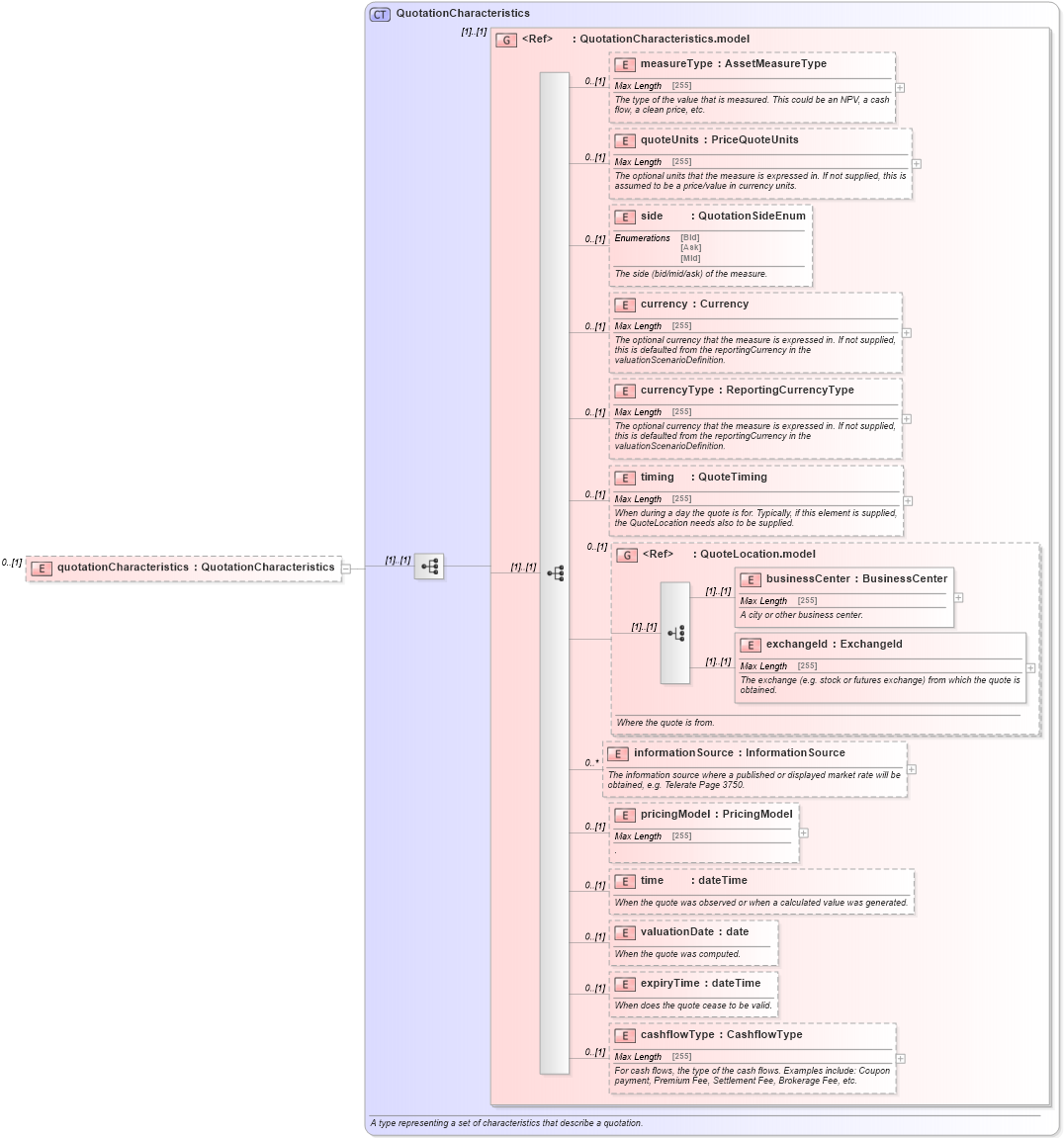

Collapse XSD Schema Diagram:
Drilldown into cashflowType in schema fpml-asset-5-4_xsd Drilldown into expiryTime in schema fpml-asset-5-4_xsd Drilldown into valuationDate in schema fpml-asset-5-4_xsd Drilldown into time in schema fpml-asset-5-4_xsd Drilldown into pricingModel in schema fpml-asset-5-4_xsd Drilldown into informationSource in schema fpml-asset-5-4_xsd Drilldown into exchangeId in schema fpml-asset-5-4_xsd Drilldown into businessCenter in schema fpml-asset-5-4_xsd Drilldown into QuoteLocation.model in schema fpml-asset-5-4_xsd Drilldown into timing in schema fpml-asset-5-4_xsd Drilldown into currencyType in schema fpml-asset-5-4_xsd Drilldown into currency in schema fpml-asset-5-4_xsd Drilldown into side in schema fpml-asset-5-4_xsd Drilldown into quoteUnits in schema fpml-asset-5-4_xsd Drilldown into measureType in schema fpml-asset-5-4_xsd Drilldown into QuotationCharacteristics.model in schema fpml-asset-5-4_xsd Drilldown into QuotationCharacteristics in schema fpml-asset-5-4_xsdXSD Diagram of quotationCharacteristics in schema fpml-reporting-5-4_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="quotationCharacteristics" type="QuotationCharacteristics" minOccurs="0" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
measureType nsA:measureType 0 (1)
quoteUnits nsA:quoteUnits 0 (1)
side nsA:side 0 (1)
currency nsA:currency 0 (1)
currencyType nsA:currencyType 0 (1)
timing nsA:timing 0 (1)
businessCenter nsA:businessCenter (1) (1)
exchangeId nsA:exchangeId (1) (1)
informationSource nsA:informationSource 0 unbounded
pricingModel nsA:pricingModel 0 (1)
time nsA:time 0 (1)
valuationDate nsA:valuationDate 0 (1)
expiryTime nsA:expiryTime 0 (1)
cashflowType nsA:cashflowType 0 (1)
<xs:group> nsA:QuotationCharacteristics.model (1) (1)
<xs:group> nsA:QuoteLocation.model 0 (1)
Collapse Derivation Tree:
