Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: scheduledDate
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsA:ScheduledDate
Containing Schema: fpml-valuation-5-4.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
A single stream level scheduled servicing date.

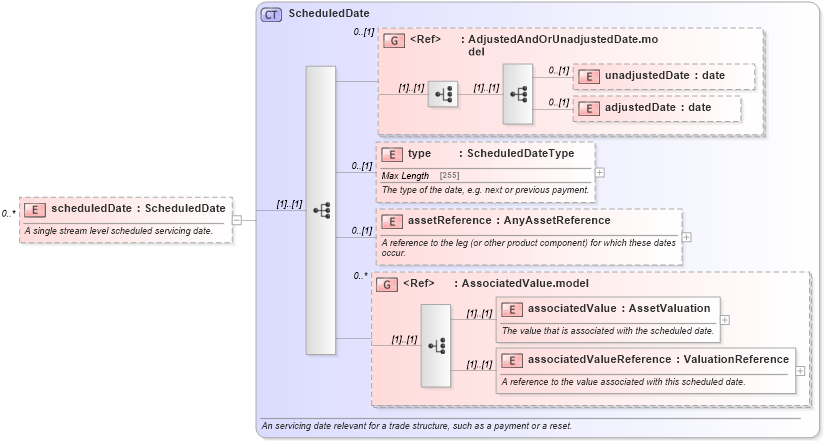

Collapse XSD Schema Diagram:
Drilldown into associatedValueReference in schema fpml-valuation-5-4_xsd Drilldown into associatedValue in schema fpml-valuation-5-4_xsd Drilldown into AssociatedValue.model in schema fpml-valuation-5-4_xsd Drilldown into assetReference in schema fpml-valuation-5-4_xsd Drilldown into type in schema fpml-valuation-5-4_xsd Drilldown into adjustedDate in schema fpml-valuation-5-4_xsd Drilldown into unadjustedDate in schema fpml-valuation-5-4_xsd Drilldown into AdjustedAndOrUnadjustedDate.model in schema fpml-valuation-5-4_xsd Drilldown into ScheduledDate in schema fpml-valuation-5-4_xsdXSD Diagram of scheduledDate in schema fpml-valuation-5-4_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="scheduledDate" type="ScheduledDate" maxOccurs="unbounded" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A single stream level scheduled servicing date.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
unadjustedDate nsA:unadjustedDate 0 (1)
adjustedDate nsA:adjustedDate 0 (1)
type nsA:type 0 (1)
assetReference nsA:assetReference 0 (1)
associatedValue nsA:associatedValue (1) (1)
associatedValueReference nsA:associatedValueReference (1) (1)
<xs:group> nsA:AdjustedAndOrUnadjustedDate.model 0 (1)
<xs:group> nsA:AssociatedValue.model 0 unbounded
Collapse Derivation Tree:
