Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: settlementPeriods
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsA:SettlementPeriods
Containing Schema: fpml-com-5-4.xsd
MinOccurs (1)
MaxOccurs unbounded
Abstract
Collapse XSD Schema Diagram:

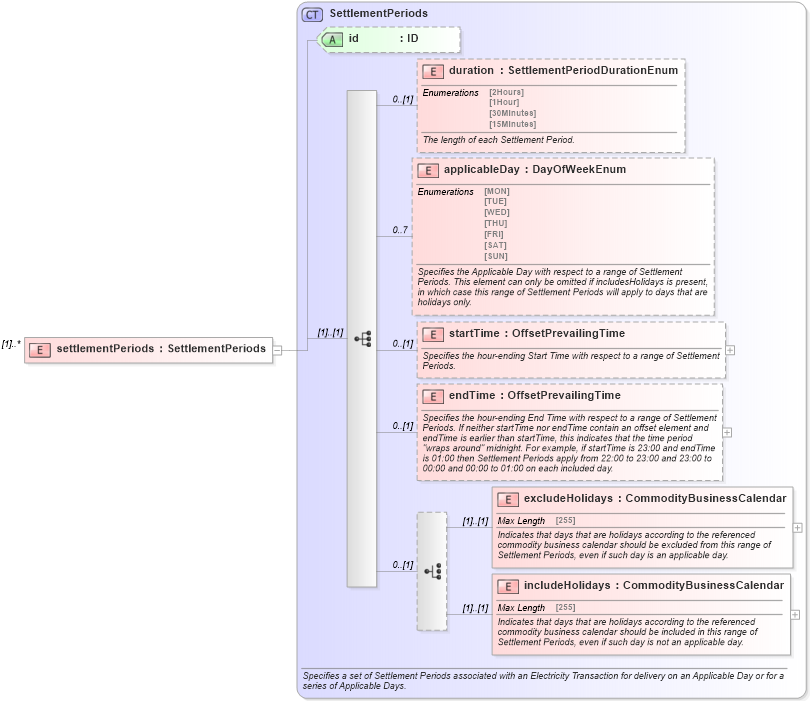

Drilldown into includeHolidays in schema fpml-com-5-4_xsd Drilldown into excludeHolidays in schema fpml-com-5-4_xsd Drilldown into endTime in schema fpml-com-5-4_xsd Drilldown into startTime in schema fpml-com-5-4_xsd Drilldown into applicableDay in schema fpml-com-5-4_xsd Drilldown into duration in schema fpml-com-5-4_xsd Drilldown into id in schema fpml-com-5-4_xsd Drilldown into SettlementPeriods in schema fpml-com-5-4_xsdXSD Diagram of settlementPeriods in schema fpml-com-5-4_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="settlementPeriods" type="SettlementPeriods" maxOccurs="unbounded">
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
duration nsA:duration 0 (1)
applicableDay nsA:applicableDay 0 7
startTime nsA:startTime 0 (1)
endTime nsA:endTime 0 (1)
excludeHolidays nsA:excludeHolidays (1) (1)
includeHolidays nsA:includeHolidays (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
Collapse Derivation Tree:
