Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: strikePricePerUnitSchedule
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsA:CommodityStrikeSchedule
Containing Schema: fpml-com-5-4.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract

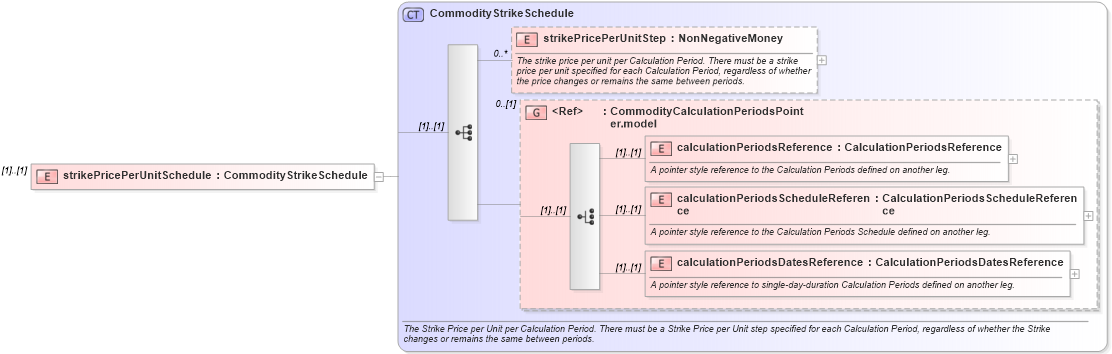

Collapse XSD Schema Diagram:
Drilldown into calculationPeriodsDatesReference in schema fpml-com-5-4_xsd Drilldown into calculationPeriodsScheduleReference in schema fpml-com-5-4_xsd Drilldown into calculationPeriodsReference in schema fpml-com-5-4_xsd Drilldown into CommodityCalculationPeriodsPointer.model in schema fpml-com-5-4_xsd Drilldown into strikePricePerUnitStep in schema fpml-com-5-4_xsd Drilldown into CommodityStrikeSchedule in schema fpml-com-5-4_xsdXSD Diagram of strikePricePerUnitSchedule in schema fpml-com-5-4_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="strikePricePerUnitSchedule" type="CommodityStrikeSchedule">
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
strikePricePerUnitStep nsA:strikePricePerUnitStep 0 unbounded
calculationPeriodsReference nsA:calculationPeriodsReference (1) (1)
calculationPeriodsScheduleReference nsA:calculationPeriodsScheduleReference (1) (1)
calculationPeriodsDatesReference nsA:calculationPeriodsDatesReference (1) (1)
<xs:group> nsA:CommodityCalculationPeriodsPointer.model 0 (1)
Collapse Derivation Tree:
