Definition Type: ComplexType
Name: TradeCashflowsProposedMatch
Namespace: http://www.fpml.org/FpML-5/reporting
Containing Schema: fpml-reconciliation-5-4.xsd
Abstract
Documentation:
"Other side's" cashflow that meets the minimimum matching criteria and is proposed as match to the cash flow that is being asserted.

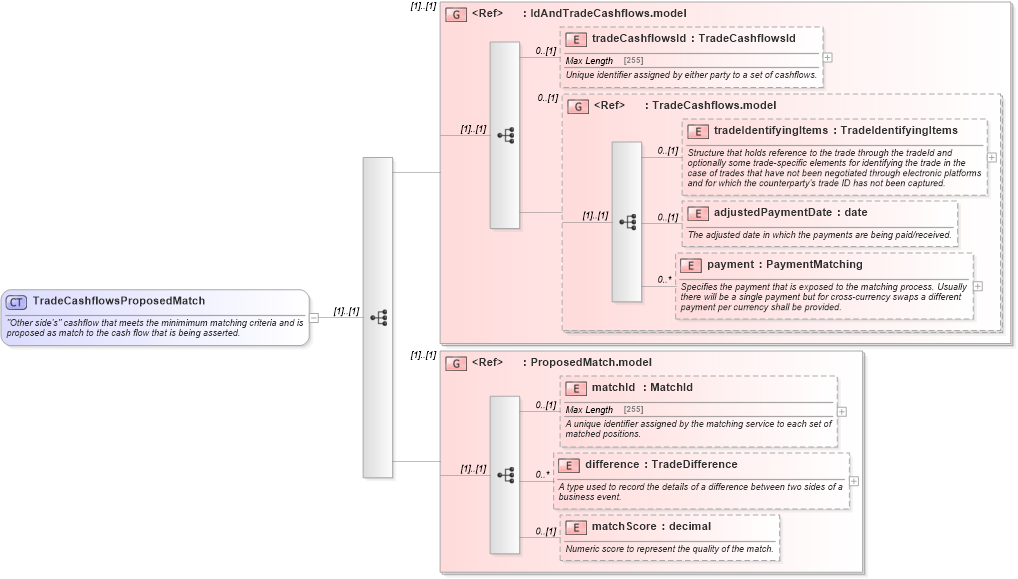

Collapse XSD Schema Diagram:
Drilldown into matchScore in schema fpml-business-events-5-4_xsd Drilldown into difference in schema fpml-business-events-5-4_xsd Drilldown into matchId in schema fpml-business-events-5-4_xsd Drilldown into ProposedMatch.model in schema fpml-business-events-5-4_xsd Drilldown into payment in schema fpml-reconciliation-5-4_xsd Drilldown into adjustedPaymentDate in schema fpml-reconciliation-5-4_xsd Drilldown into tradeIdentifyingItems in schema fpml-reconciliation-5-4_xsd Drilldown into TradeCashflows.model in schema fpml-reconciliation-5-4_xsd Drilldown into tradeCashflowsId in schema fpml-reconciliation-5-4_xsd Drilldown into IdAndTradeCashflows.model in schema fpml-reconciliation-5-4_xsdXSD Diagram of TradeCashflowsProposedMatch in schema fpml-reconciliation-5-4_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="TradeCashflowsProposedMatch">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">"Other side's" cashflow that meets the minimimum matching criteria and is proposed as match to the cash flow that is being asserted.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:group ref="IdAndTradeCashflows.model" />
        <xsd:group ref="ProposedMatch.model" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
tradeCashflowsId nsA:tradeCashflowsId 0 (1)
tradeIdentifyingItems nsA:tradeIdentifyingItems 0 (1)
adjustedPaymentDate nsA:adjustedPaymentDate 0 (1)
payment nsA:payment 0 unbounded
matchId nsA:matchId 0 (1)
difference nsA:difference 0 unbounded
matchScore nsA:matchScore 0 (1)
<xs:group> nsA:IdAndTradeCashflows.model (1) (1)
<xs:group> nsA:TradeCashflows.model 0 (1)
<xs:group> nsA:ProposedMatch.model (1) (1)
Collapse Derivation Tree:
Collapse References:
nsA:proposedMatch
