Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: EquitySwapTransactionSupplement
Namespace: http://www.fpml.org/FpML-5/transparency
Type: nsF:ReturnSwapBase
Containing Schema: fpml-return-swaps-5-8.xsd
Abstract
Documentation:
A type for defining Equity Swap Transaction Supplement

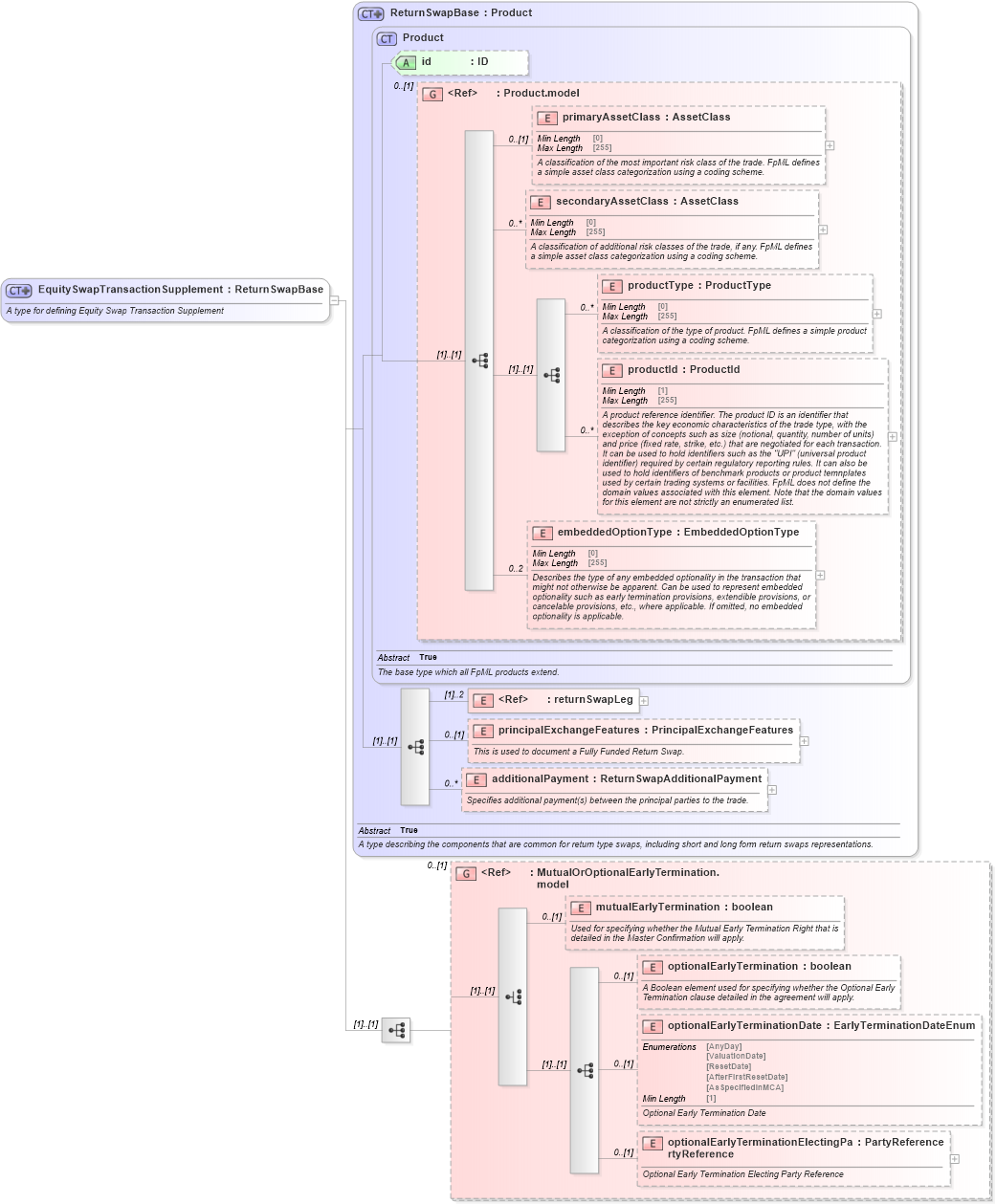

Collapse XSD Schema Diagram:
Drilldown into optionalEarlyTerminationElectingPartyReference in schema fpml-eq-shared-5-8_xsd3 Drilldown into optionalEarlyTerminationDate in schema fpml-eq-shared-5-8_xsd3 Drilldown into optionalEarlyTermination in schema fpml-eq-shared-5-8_xsd3 Drilldown into mutualEarlyTermination in schema fpml-eq-shared-5-8_xsd3 Drilldown into MutualOrOptionalEarlyTermination.model in schema fpml-eq-shared-5-8_xsd3 Drilldown into additionalPayment in schema fpml-eq-shared-5-8_xsd3 Drilldown into principalExchangeFeatures in schema fpml-eq-shared-5-8_xsd3 Drilldown into returnSwapLeg in schema fpml-eq-shared-5-8_xsd3 Drilldown into embeddedOptionType in schema fpml-shared-5-8_xsd5 Drilldown into productId in schema fpml-shared-5-8_xsd5 Drilldown into productType in schema fpml-shared-5-8_xsd5 Drilldown into secondaryAssetClass in schema fpml-shared-5-8_xsd5 Drilldown into primaryAssetClass in schema fpml-shared-5-8_xsd5 Drilldown into Product.model in schema fpml-shared-5-8_xsd5 Drilldown into id in schema fpml-shared-5-8_xsd5 Drilldown into Product in schema fpml-shared-5-8_xsd5 Drilldown into ReturnSwapBase in schema fpml-eq-shared-5-8_xsd3XSD Diagram of EquitySwapTransactionSupplement in schema fpml-return-swaps-5-8_xsd3 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="EquitySwapTransactionSupplement">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A type for defining Equity Swap Transaction Supplement</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="ReturnSwapBase">
            <xsd:sequence>
                <xsd:group ref="MutualOrOptionalEarlyTermination.model" minOccurs="0" />
                <!--View Generation: SKIPPED  - Documentation-->
                <!--View Generation: SKIPPED extraordinaryEvents - Documentation-->
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
primaryAssetClass nsF:primaryAssetClass 0 (1)
secondaryAssetClass nsF:secondaryAssetClass 0 unbounded
productType nsF:productType 0 unbounded
productId nsF:productId 0 unbounded
embeddedOptionType nsF:embeddedOptionType 0 2
returnSwapLeg nsF:returnSwapLeg (1) 2
principalExchangeFeatures nsF:principalExchangeFeatures 0 (1)
additionalPayment nsF:additionalPayment 0 unbounded
mutualEarlyTermination nsF:mutualEarlyTermination 0 (1)
optionalEarlyTermination nsF:optionalEarlyTermination 0 (1)
optionalEarlyTerminationDate nsF:optionalEarlyTerminationDate 0 (1)
optionalEarlyTerminationElectingPartyReference nsF:optionalEarlyTerminationElectingPartyReference 0 (1)
<xs:group> nsF:MutualOrOptionalEarlyTermination.model 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsF:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsF:equitySwapTransactionSupplement
